PACKOUT Modular Storage System

Milwaukee® 120’ Mid-Stiff Pipeline Inspection Reel

Our 120’ Mid-Stiff Pipeline Inspection Reel, designed for 2”-6” drain lines, is powered by the M18™ 500 GB Control Hub, part of the M18™ Modular Pipeline Inspection System. Featuring the industry’s shortest 25 mm 1080p self-leveling HD camera head, the ability to digitally zoom up to 4X and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. The 120' Pipeline Inspection Reel features a compact design with removable backpack straps, making transportation to any roof, drain, crawl space, or cleanout easier. It comes equipped with small and medium camera skids and a camera head sleeve to center and protect the camera while inside pipes.

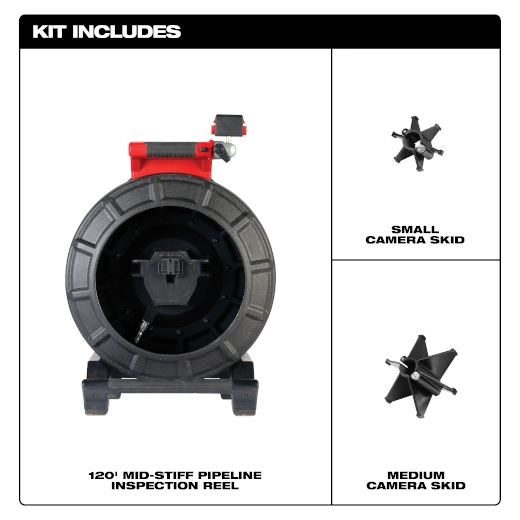

Includes

(1) Milwaukee® 120’ Mid-Stiff Pipeline Inspection Reel(2973-20)
(1) Medium camera head skid for 25mm camera
(1) Small camera head skid for 25mm camera

Milwaukee® 120’ Mid-Stiff Pipeline Inspection Reel

Key FeaturesSpecificationsReviews

M18™ 120’ PIPELINE
INSPECTION SYSTEM

CLEAREST IMAGE.
EASIEST INSPECTIONS.

HD CAMERA DELIVERS 4X DIGITAL ZOOM

  • 25 mm Self-Leveling Camera Head
  • Highest Resolution during live streaming, picture, and video

CAPTURE, CREATE AND SHARE TO MOBILE DEVICES

  • Save HD images and video recordings to M18™ 500 GB Control Hub
  • Send saved recordings faster directly from mobile device

MONITOR MOUNT AND BACKPACK STRAPS FOR HANDS-FREE CARRYING

  • Adjustable Monitor Mount for best viewing
  • Removable backpack straps provide best transportation when accessing roofs
1080p camera resolution providing the industry's clearest image inside of drain lines
25 mm self-leveling HD camera head with Sapphire Crystal lens
10mm Push Cable Diameter provides best mix of stiffness and flexibility
Line Capacity: 2"-6"
Sonde Frequency: 512Hz, 33 KHz
Line Trace Frequency: 33kHz, 83kHz

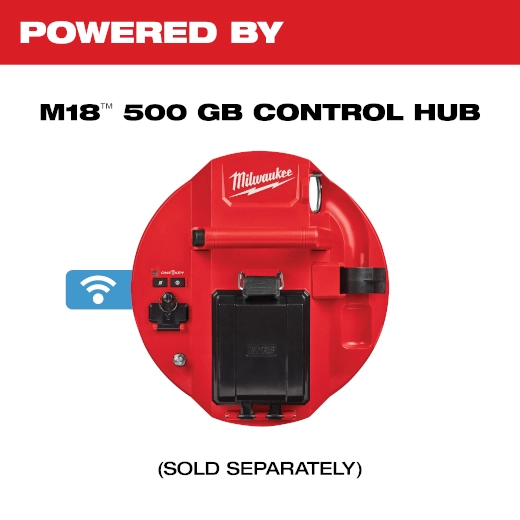

Powered by the M18™ 500GB Control Hub
Removable backpack straps for hands-free carrying
Onboard monitor mount for viewing and transportation

You May Also Like...

Product Specifications

Material Composition
Plastic
Length
13.3 in
Weight
25.4 lb
Height
22.7 in
Width
17.8 in
Line Capacity
2"-6"
Push cable length
120'
Push Cable Diameter
10mm
Camera resolution
1080p
Camera head Ingress Protection
IP67
Sonde Frequency
512 Hz, 33 kHz
Line Trace Frequency
33 kHz, 83 kHz
Camera Head Warranty
1 Year
OneKey Compatible
Yes
Power Source
Cordless
Battery System
M18
