True RMS Multimeter

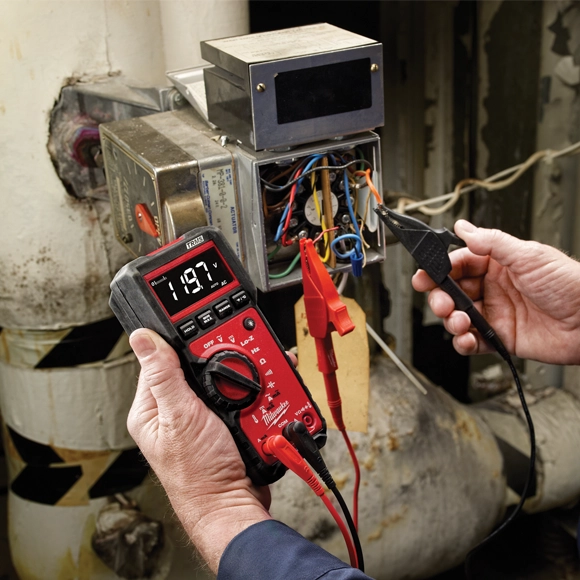

The Milwaukee True RMS Multimeter is a heavy duty meter for professional residential, commercial and industrial applications. The perfect tool for professional electricians, the 2217-20 offers functionality users expect with features that make doing the job easier. The 2217-20 True RMS Multimeter features a large white on black display for clearer readings, a slide rail system to add proprietary accessories and rugged over-molding for increased durability and grip. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users. This meter is covered by Milwaukee’s 5-Year Warranty.

Includes

(1) True RMS Multimeter(2217-20NST)
(1) Dual Banana Thermocouple
(2) AA Batteries
(1) Manual
(1) Electrical Test Lead Set
(1) NIST Certificate of Calibration with Data

True RMS Multimeter

Key FeaturesSpecificationsReviews
Wide Voltage range to 600 volts AC/DC
Auto range to millivolts and milliamp ranges
True RMS for accurate measurement in all applications
Lo-Z measurement to eliminate ghost voltage
Frequency measurements from 10Hz to 50kHz
Contact temperature measurement from -40 to 752°F
Current Measurement to 10 amps AC/DC
High Contrast, White on Black Display with Backlight for easy reading
Rugged over-molding increases durability and user grip

You May Also Like...

Product Specifications

Tool Warranty
5 Years
Battery Type
Alkaline (AA)
Display Type
White on Black LCD
Switch Type
Dial
Length
6-1/2"
TRMS
Yes
Current AC DC
10.00A
Voltage AC DC
600V
Frequency
10 Hz - 50.00 kHz
Resistance
40MΩ
Continuity
Audible
Capacitance
1,000μF
Contact Temperature
-40° F to 752° F (-40° C to 400° C)
Safety Category Rating
CAT III 600V
Lo Z
Yes
Backlight
Yes
HOLD MIN MAX
Yes
Bargraph
Yes
Rugged Overmolding
Yes
Accessory Attachment
Magnetic Meter Holder
Calibration Needed
Yes - Recommend calibration service once every year
