Compatible with all 10,000psi rated single acting hydraulic hoses, cylinders, and tools

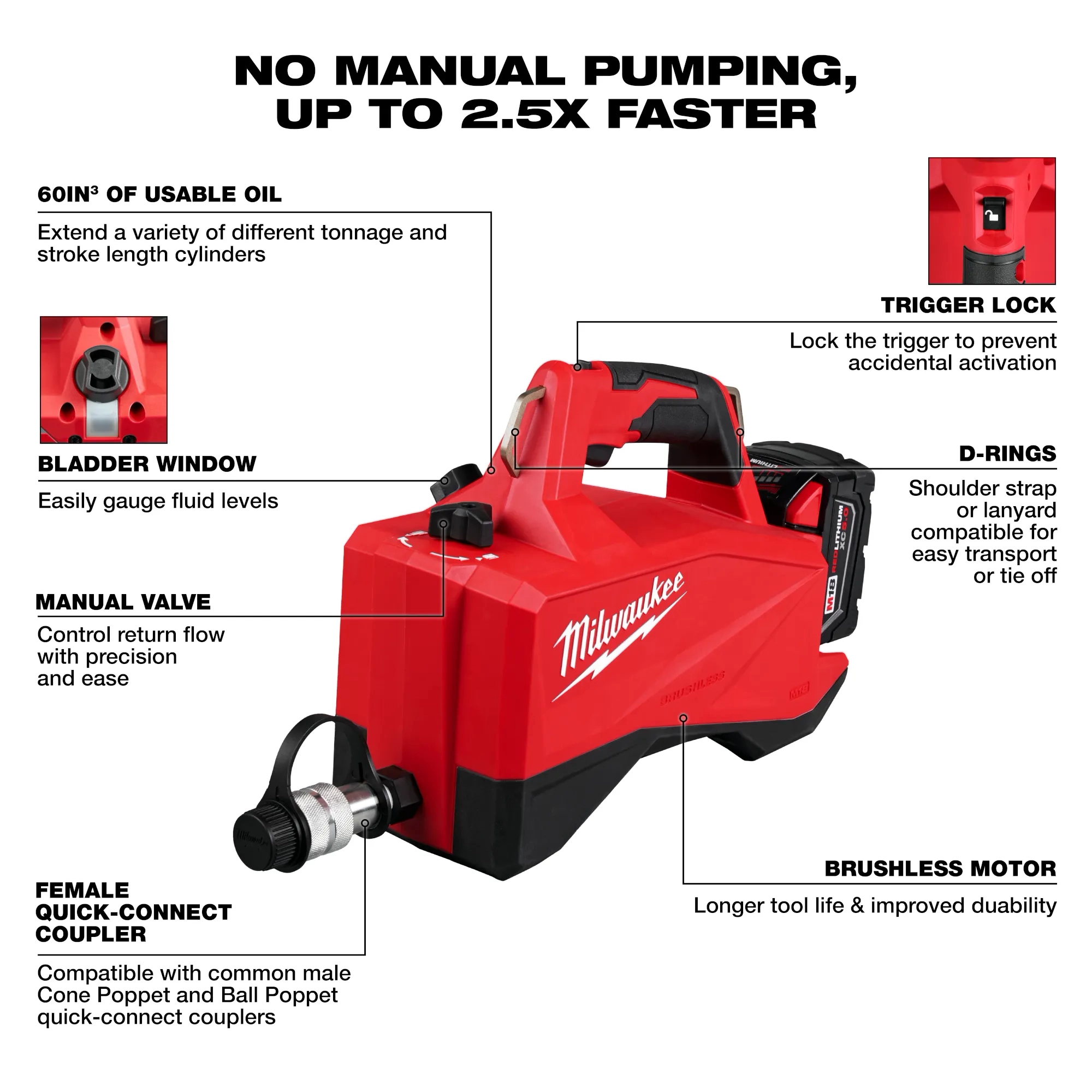

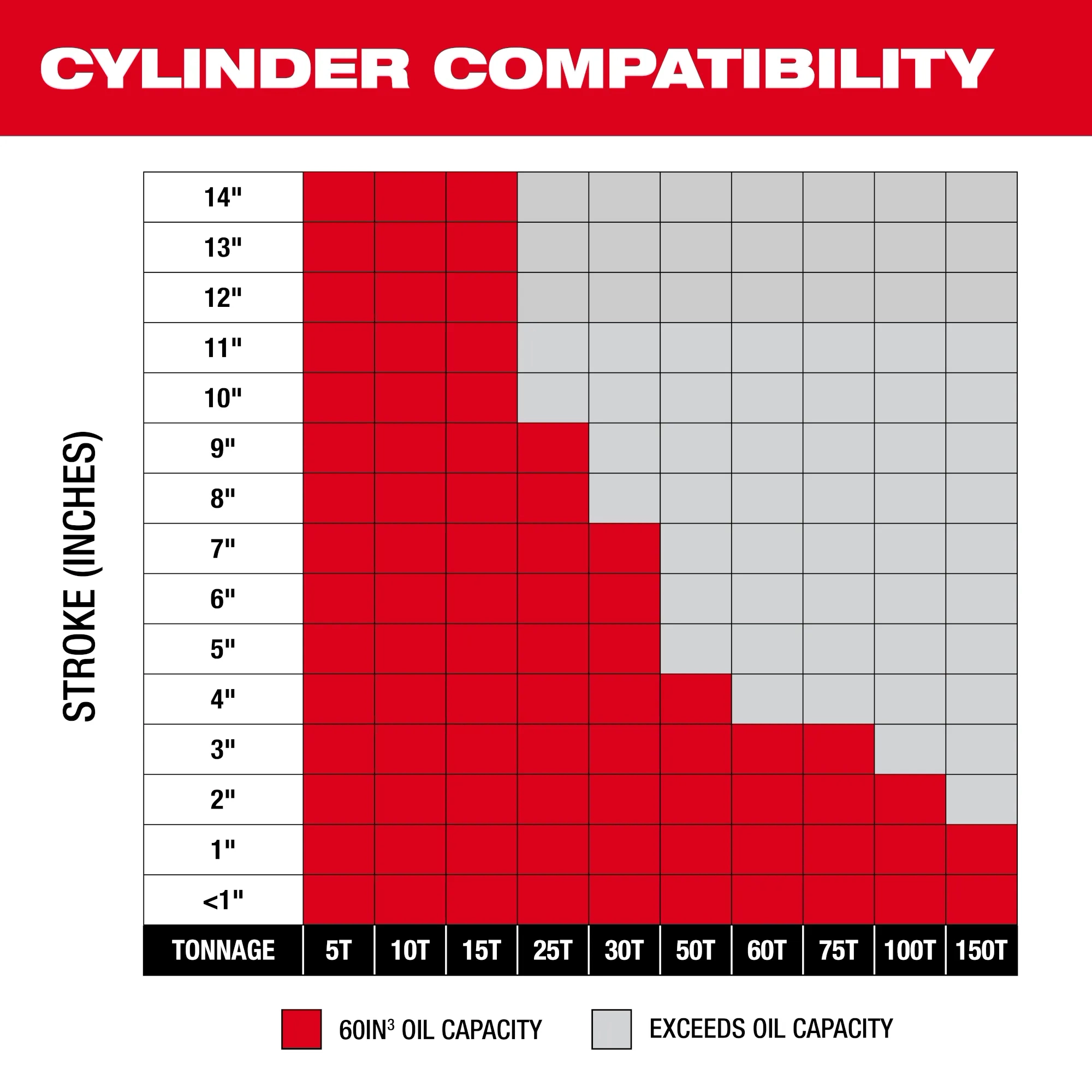

60in3 of usable oil allows you to fully extend a wide variety of small cylinders and tools to full stroke
Manual Valve – Control return flow with precision and ease
Bladder Window – Quickly gauge fluid levels
Trigger Lock Out – Prevent unwanted tool activation in transport, set up, and tear down

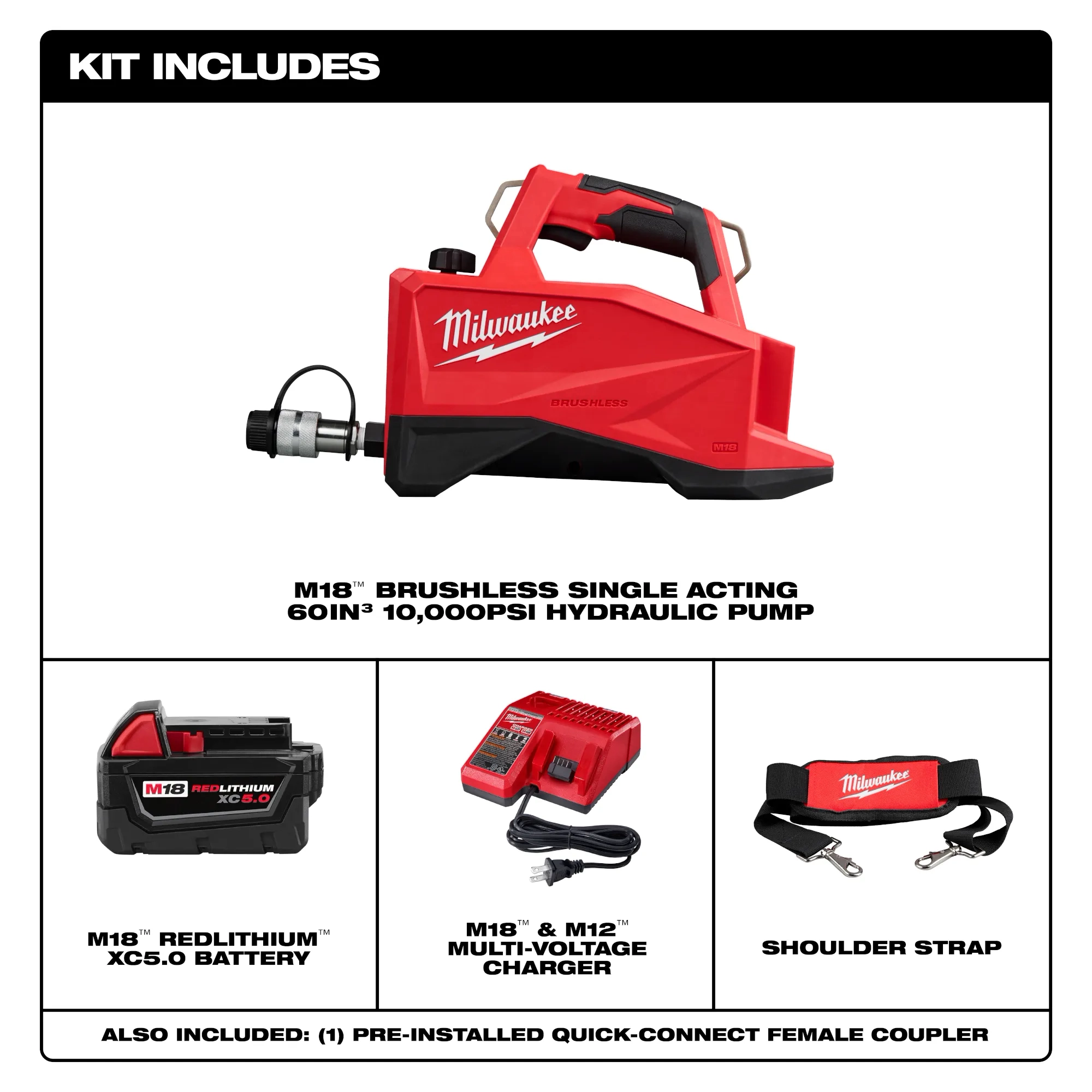

Integrated D-Rings to easily tie-off with a lanyard at height; leverage the included shoulder strap for easier transport, and to keep the pump close for those hard-to-reach applications
Compact and light weight design at only 12.6 lbs (with M18™ XC 5.0)
Female Quick Connect Cone Poppet Coupler – Compatible with common cone poppet and ball poppet male quick-connect couplers
Brushless Motor provides improved durability
Compatible with all M18™ batteries and chargers
You May Also Like...

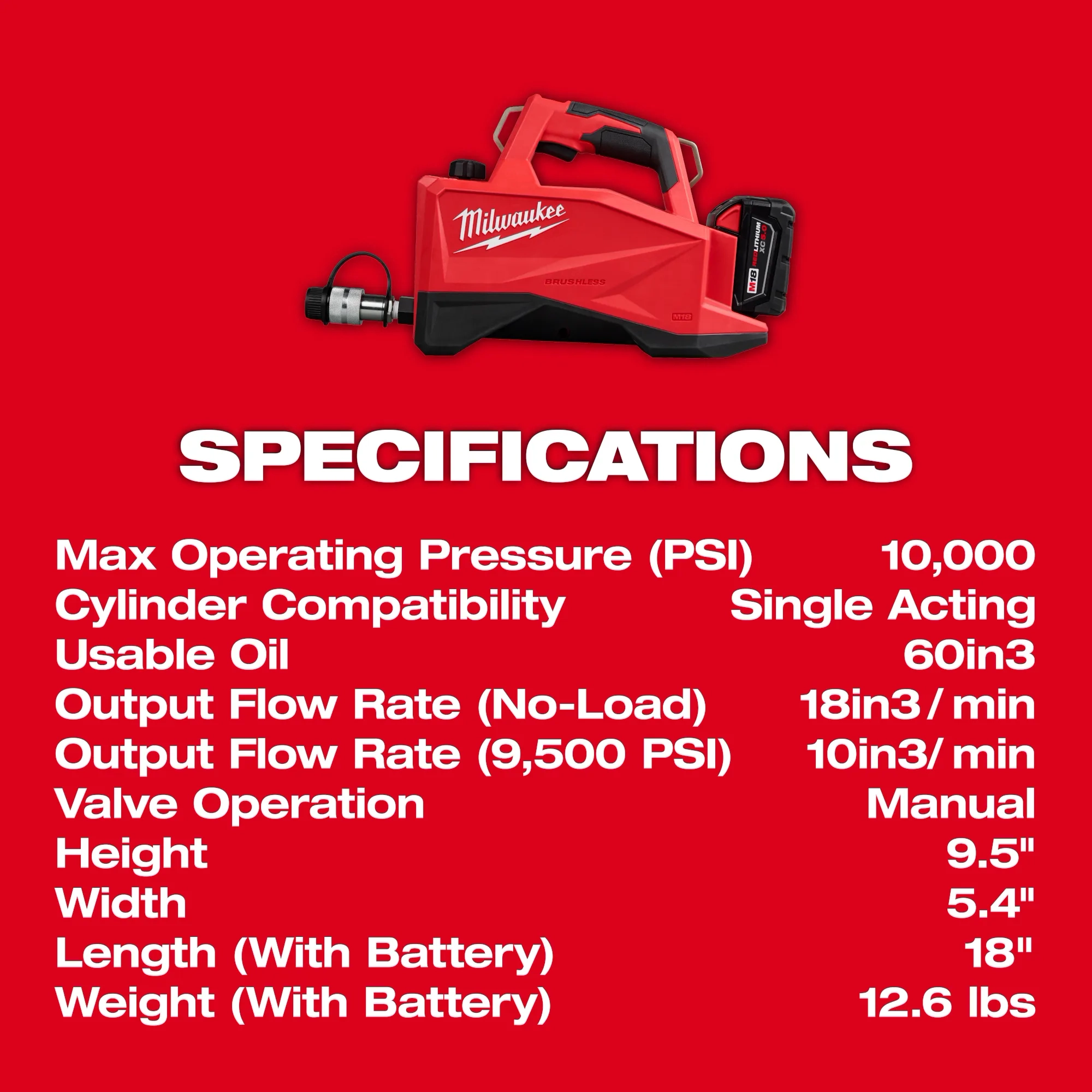

Product Specifications
Badge Branding
REDLITHIUM™
Power Source
Cordless
Motor Type
Brushless
Material Composition
Glass Filled Nylon
Length
18 in
Weight
12.6 lb
Height
9.5 in
Width
5.4 in
Maximum Operating Pressure
10,000 PSI
Cylinder Compatibility
Single Acting
Output Flow Rate - No-Load
18in3/min
Output Flow-Rate - 9500
10in3/min
Valve Operation
Manual
Length - With Battery
18in
Weight - With Battery
12.6lbs
Brushless
Yes
Battery System
M18
