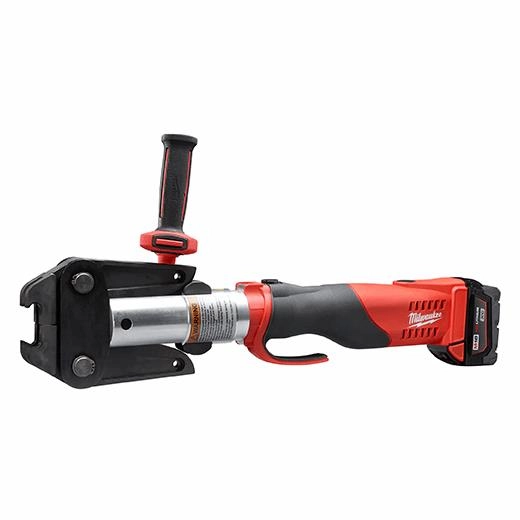

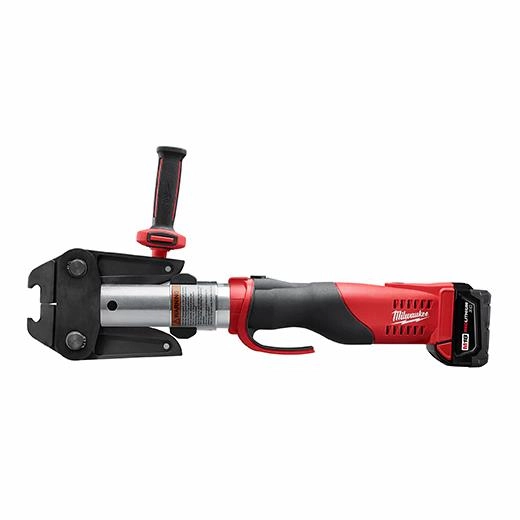

M18™ FORCE LOGIC™ Long Throw Press Tool 1/2" -1" Kit

The M18™ Force Logic™ Long Throw Press Tool is the smallest, lightest and most intelligent extended length press tool in the market today.  Featuring an in-line design, the M18™ Force Logic™ Long Throw Press Tool is not only offer the most ergonomic solution for navigating around installed pipes, but also deliver on the highest level of press accuracy and reliability available on the market. Utilizing Milwaukee® Redlink™  Electronics, the M18™ Force Logic™  Press Tool monitors the force output to ensure quality connections and provide the user peace of mind by visually indicating both a secure connection and when the tool needs calibration. Featuring the best calibration standard in the industry, the tool only require service every 40,000 crimps. This allows users up to 4X more connections between services, keeping the tool on the jobsite up to 4X longer than competitive units.   Powered by the M18™ Red Lithium battery means this is the only press system where you can Cut, Fasten and Connect on One System.

This product is no longer available, however it has been replaced with:

  • Smallest and lightest long throw press tool in the market at only 9.5 lbs
  • Balanced, in-line design
  • Press indicator provides visual assurance of a quality connection
  • Industry leading 40,000 cycles between calibration inspections
  • Long stoke provides the ability to press larger dimensions and more demanding pipe like stainless steel Shorter stroke provides faster press times on jaws and copper rings
  • M18 system provides up to 175+ solutions on 1 pack
  • Jaw capacity: 4 CU, 2 grinnell SS fitting

Battery Specifications

Voltage 18V

Product Specifications

Length 16.8"
Force 7,200 lbs
Pipe Capacity 1/2" - 4" (Varies by Material)
Approx Cycle Time 5 Seconds
Warranty 5 Year Limited Warranty
Battery M18™ REDLITHIUM™
Charger M18™ and M12™ Multi-Voltage Charger
Calibration Interval 50,000 Cycles
Jaw Warranty 2 Year
Jaw Capacity 1/2" to 4" CU and 1/2" to 1" SS
Battery Warranty 2 Year
Tool Warranty 5 Years
Width 4.8"
Battery System M18
Weight 8 lbs
Power Source Cordless
