M12 FUEL™ Installation Drill/Driver (Tool-Only)

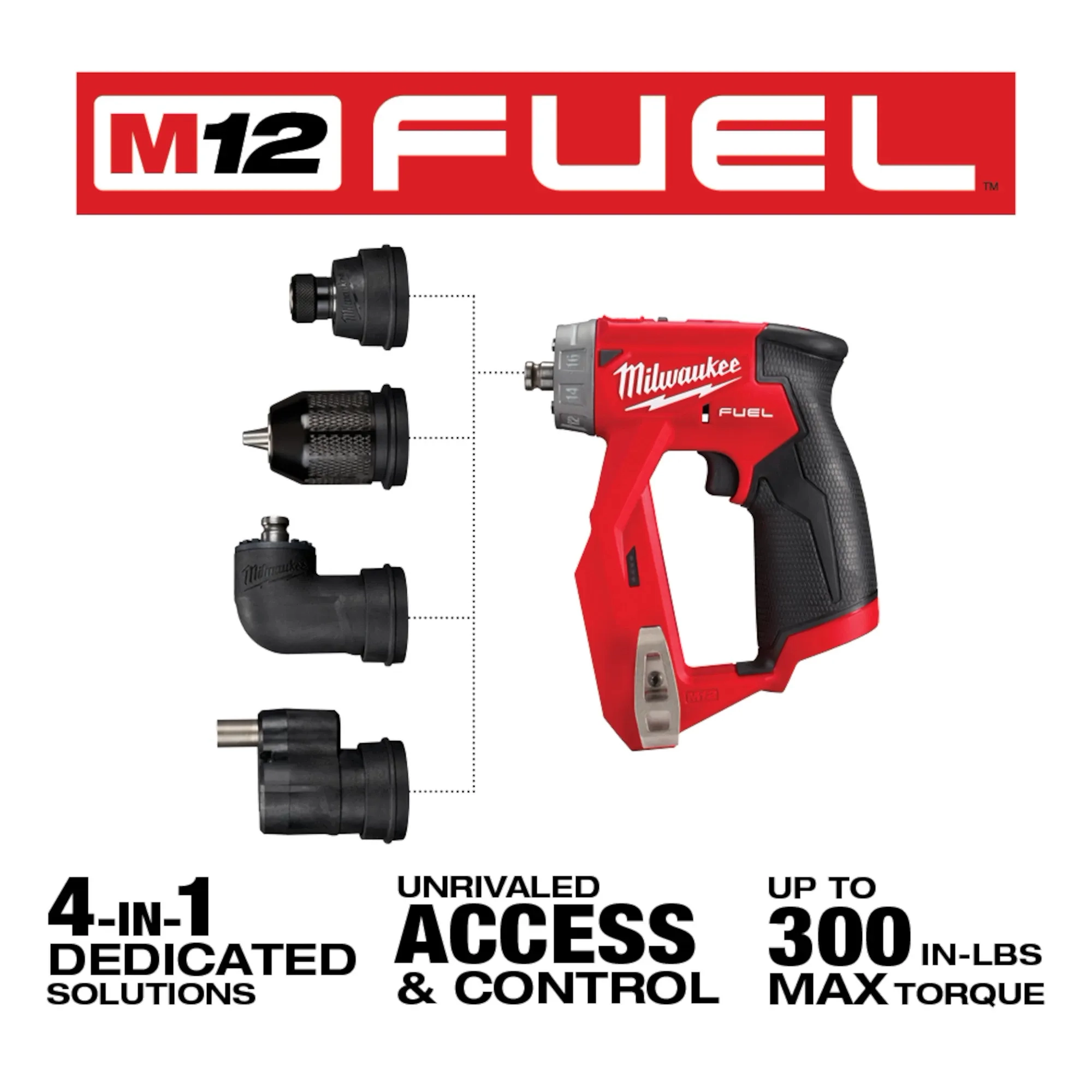

Our M12 FUEL™ Installation Drill/Driver features 4 dedicated solutions, delivering unrivaled access and control with up to 300 in-lbs of max torque. Four dedicated heads, including a 3/8” Chuck, Offset Driver, ¼” Hex, and Right Angle, can attach in 16 different positions. This provides you with a 4-in-1 drilling and driving solution that is purposefully designed to reach uniquely challenging locations. The compact drill driver features a slim tool profile and an inline grip in the back of the tool that provides ultimate tool control and unrivaled access. The top of the tool is flat, allowing the tool to be placed flush against surfaces for additional access when needed. The front of the tool is equipped with a magnetic bit holder that securely holds multiple bits, enhancing your productivity. These unique features combine with the tool’s compact size and weight allowing you to maneuver the multi-head drill/driver for maximum versatility and best access in hard to reach places. The modular drill/driver is equipped with a POWERSTATE™ Brushless Motor, delivering you with 1600 RPMS and 300 in./lbs of torque. This provides you with the necessary power for installation applications, especially in electrical, cabinet installation, MRO, HVAC, automotive, and remodel applications. The installation drill/driver features REDLINK PLUS™ Intelligence, protecting your tool from overloading or overheating. The compact cordless drill/driver is powered by our M12™ REDLITHIUM™ battery packs (not included), delivering you with more run-time per charge and more work over the life of the pack. In addition to the 12-volt tool and four attachments, a compartmentalized contractor bag is included to hold each individual head.

Includes

(1)
M12 FUEL™ Installation Drill/Driver (Tool-Only) (2505-20)
(1) Right Angle Attachment (1) Offset Attachment (1) 3/8" Metal Chuck Attachment (1) 1/4" Hex Attachment (1) Compartmentalized Contractor Bag (1) Belt Clip

M12 FUEL™ Installation Drill/Driver

4-IN-1
Dedicated
Solutions
Unrivaled
Access
& Control
Up To
300 in-lbs
MAX Torque

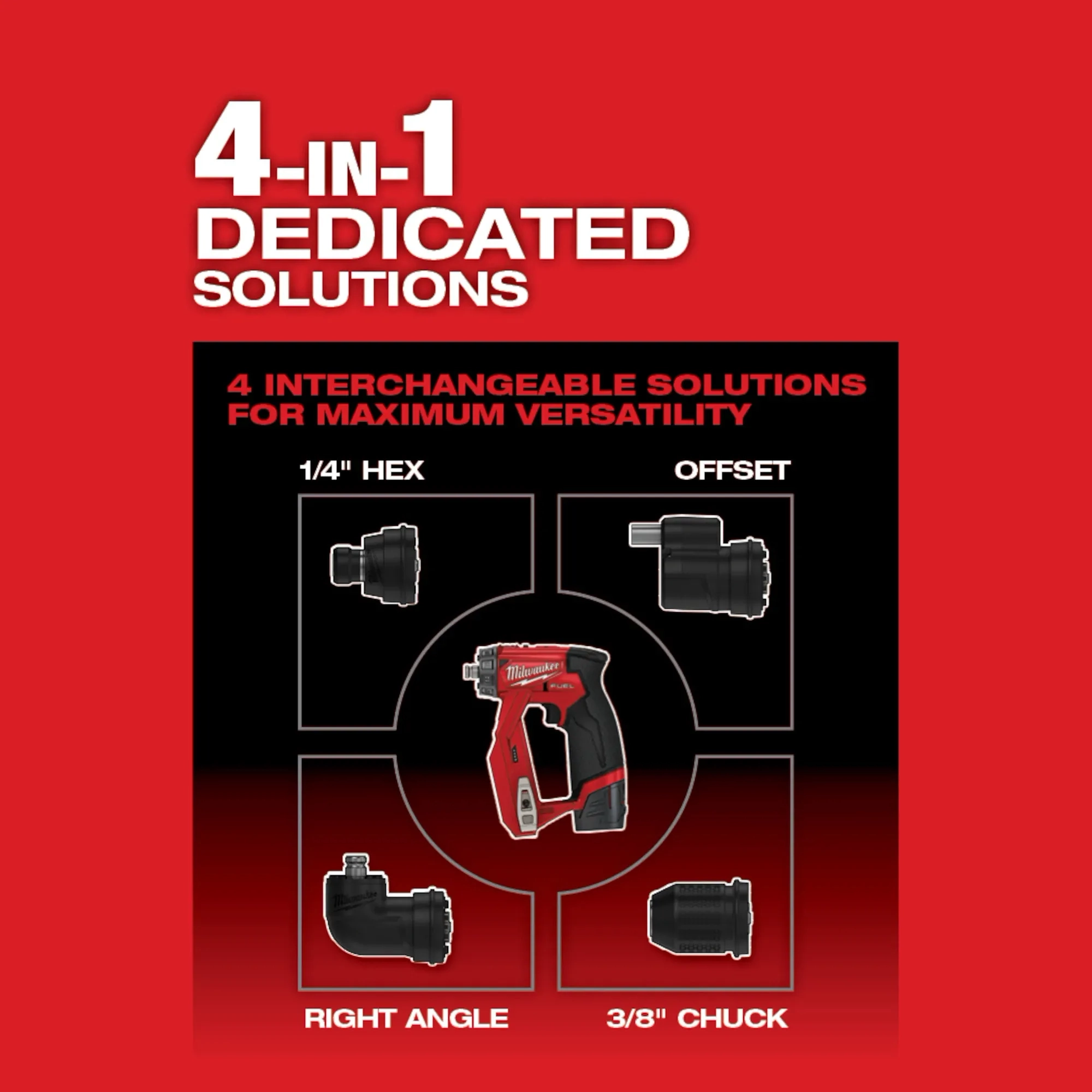

4-1 DEDICATED SOLUTIONS

  • 4 interchangeable solutions provide maximum versatility
  • Each attachment connects in 16 different positions for access at almost every angle
  • ¼” Hex, 3/8” Chuck, and Offset can attach to the right angle for additional drilling or fastening needs at a right angle

UNRIVALED ACCESS & CONTROL

  • Purposefully designed to access uniquely challenging locations
  • Inline grip on the back of the tool provides additional tool control & balance
  • Lightest, Most Compact: Only 5.12” in length and 2.0lbs with battery attached allowing for easier access in tight spaces and less user fatigue

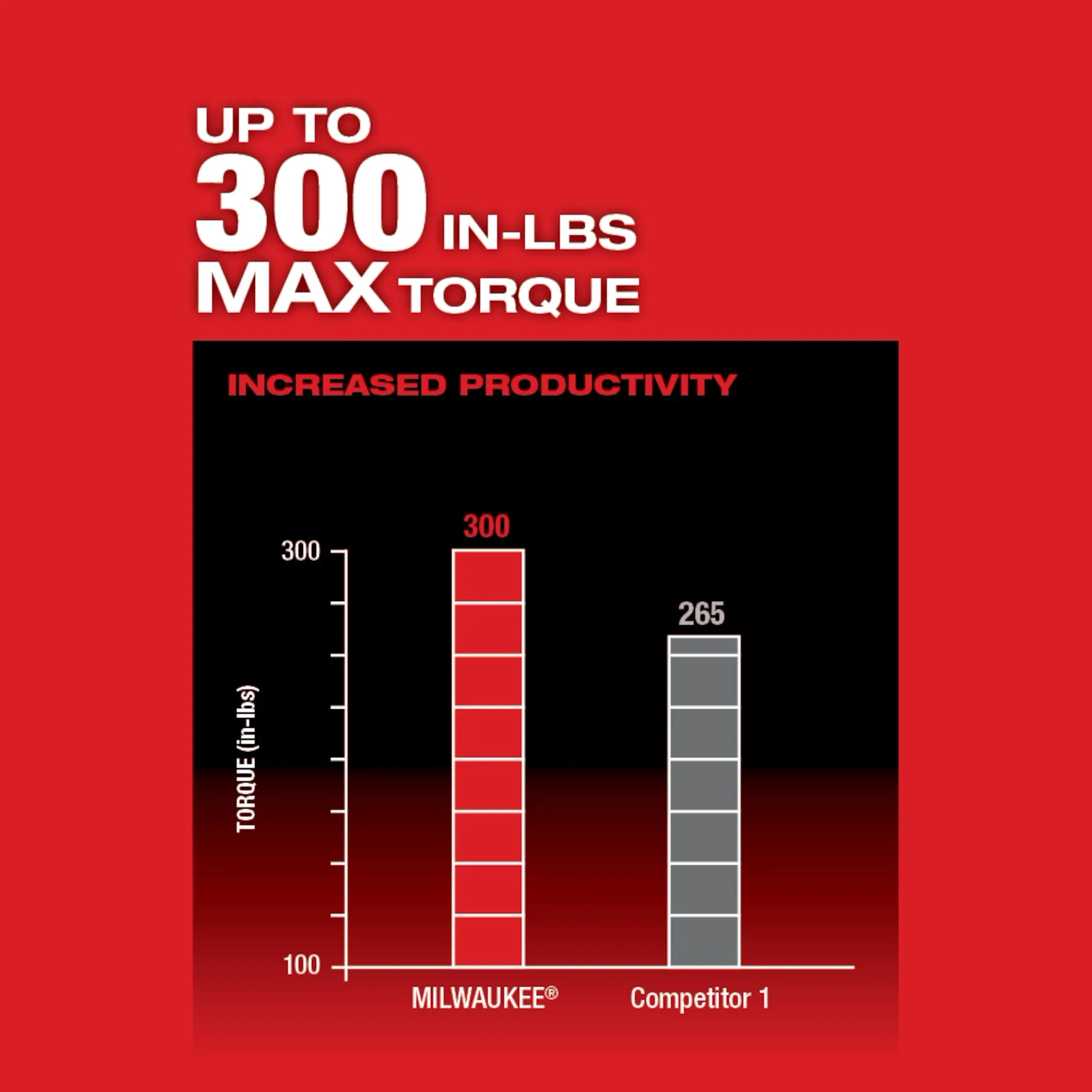

UP TO 300 IN-LBS OF MAX TORQUE

  • Milwaukee built POWERSTATE™ Brushless Motor works harder and lives longer than all leading competitors
  • Ensures maximum productivity
M12

PORTABLE PRODUCTIVITY
TRADE FOCUSED
SYSTEM WIDE

  • 4-in-1 Dedicated Solutions
  • Up to 300 in-lbs of max torque
  • Right Angle Attachment provides efficient fastening and/or drilling at 90 degrees for unrivaled access in tight spaces
  • Magnetic Bit Holder holds multiple bits on board to save time when switching accessories
  • Inline grip allows for maximum tool control and easier access to hard to reach places
You May Also Like...

Product Specifications

Chuck Type Metal Single Sleeve
Chuck Size 3/8
Tool Warranty 5 Year Limited Warranty
Power Source Cordless
Motor Type POWERSTATE Brushless
Material Composition Metal
Length 5.1 in
Weight 2 lb
Height 7 in
Width 1.8 in
Voltage 12V
Brushless Yes
Battery System M12
Maximum RPM 1600 rpm
Peak Torque 300 ft/lbs
RPM Range 0 - 400 / 0 - 1,600 RPM
