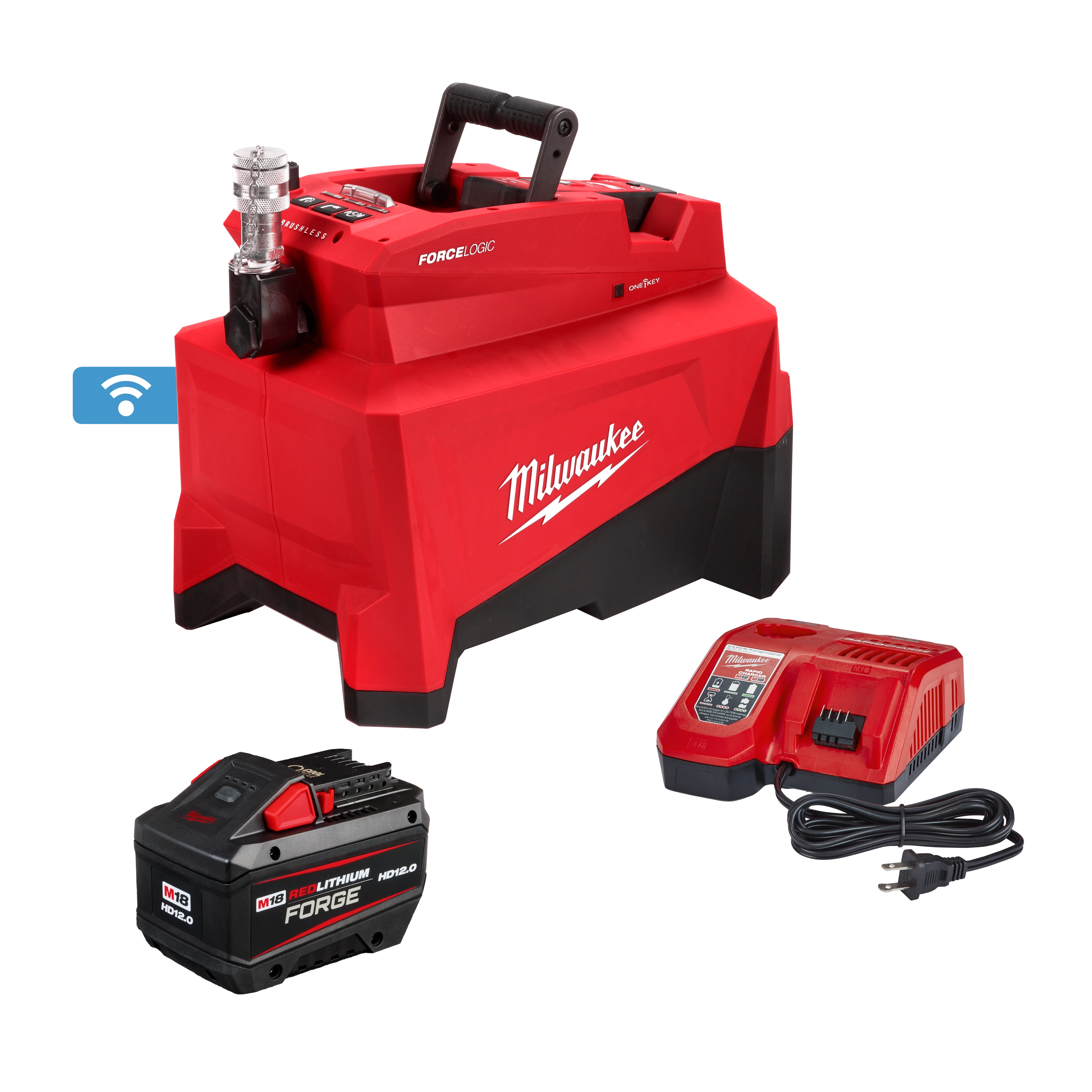

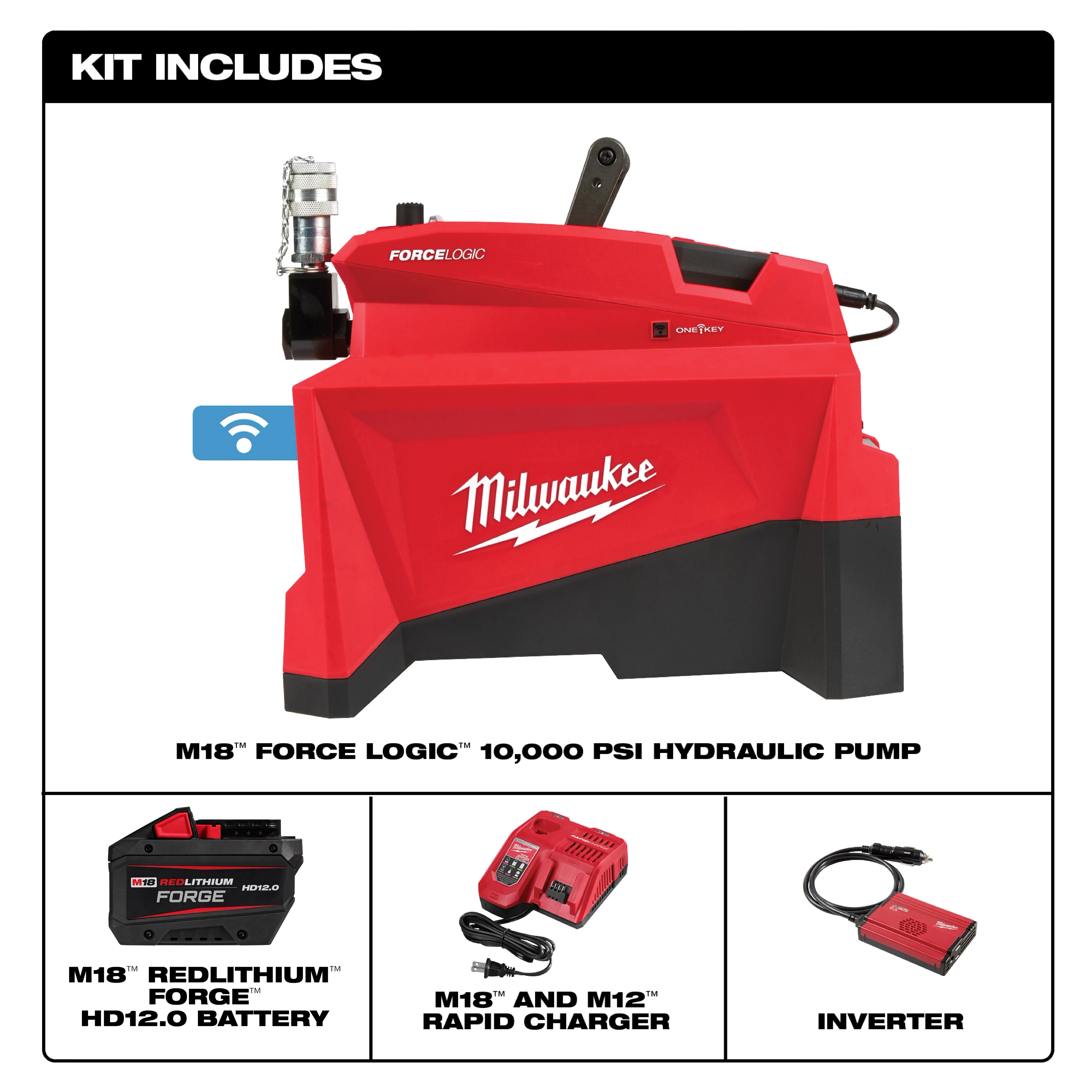

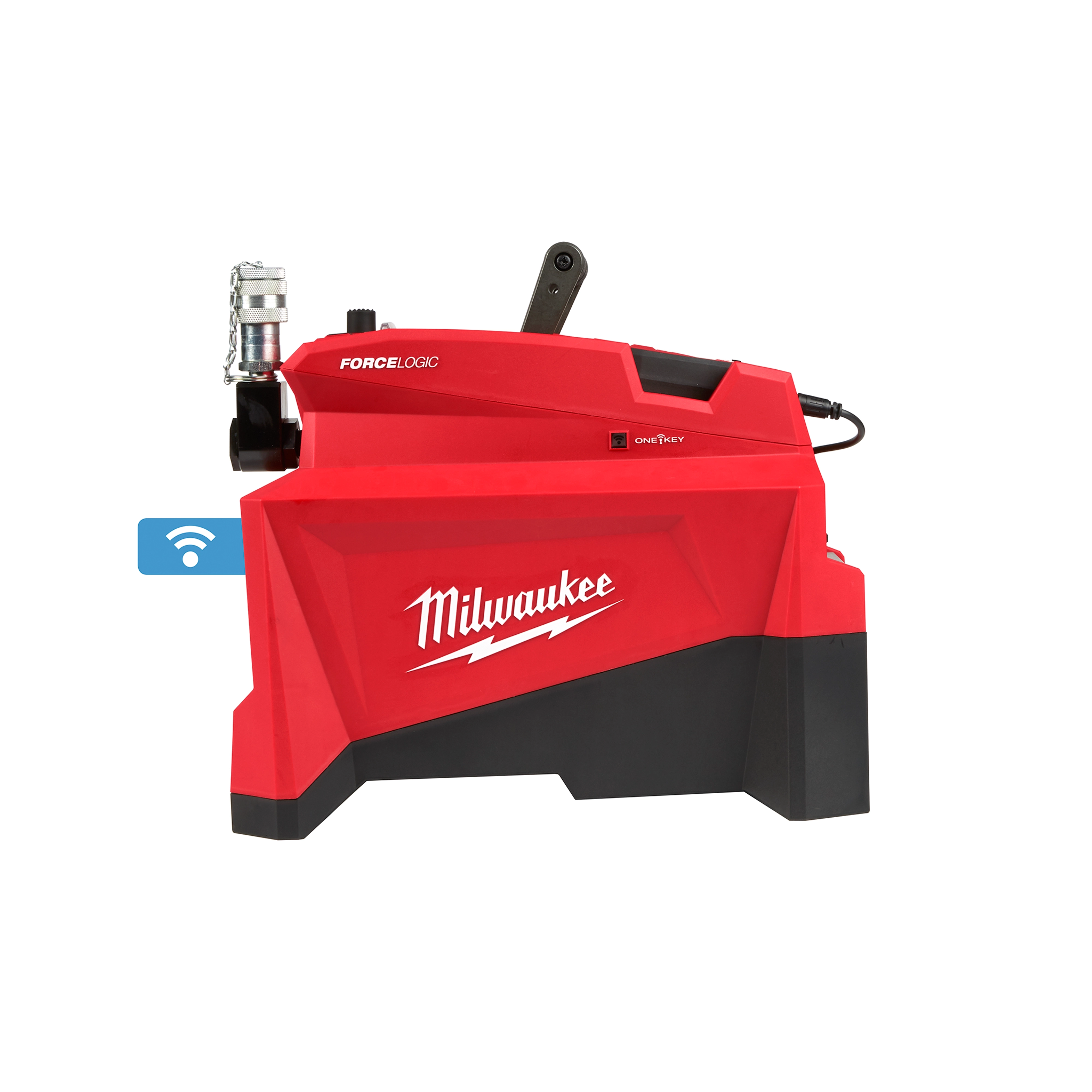

M18™ FORCE LOGIC™ 10,000psi Hydraulic Pump Kit

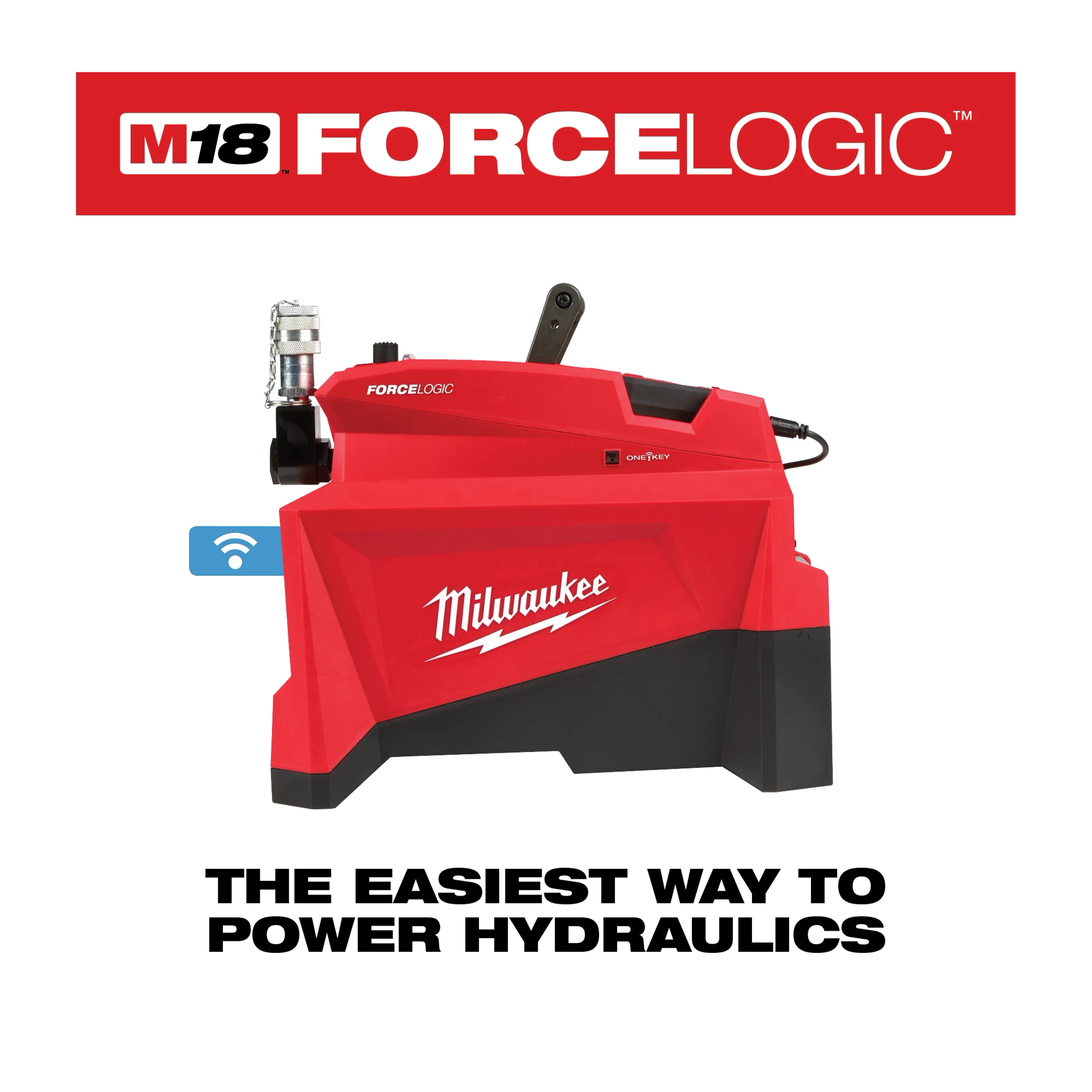

Our M18™ FORCE LOGIC™ 10,000psi Hydraulic Pump Kit is the Easiest Way to Power Hydraulics. The cordless hydraulic pump is designed to be fully compatible with all existing 10,000psi rated hydraulic hoses and heads, fundamentally changing the way you install transmission lines. The hydraulic pump delivers the easiest set-up and is up to 80% smaller and up to 75lbs lighter than gas units, allowing you to easily carry it without assistance. Utilizing the available bucket hanger attachment creates a stable, level operating position that allows you to maximize the limited available space in buckets and baskets. The high-pressure hydraulic pump provides you with 3X the flow rate of other cordless competition. The cordless hydraulic pump has 24-second cycle times and up to 60 presses on a single battery on 1590 ACSR connectors, providing you with gas-like performance. Three modes of operation give you the flexibility to modify the pump's operation to your specific application. Wireless Mode allows you to create a physical air gap between an operator and a potentially live electrical line when performing a remote cut. PFM™ (Predictive Force Monitoring) provides you with instant pressure verification via a green indicator. MILWAUKEE® ONE-KEY™ Technology enables you to store real-time cycle data, generate professional reports, view historical tool performance data and sync it all wirelessly to the cloud for easy access. The 10,000 PSI hydraulic pump features a POWERSTATE™ Brushless Motor, REDLINK™ Electronics, and REDLITHIUM™ Batteries providing you with Unmatched Reliability in the toughest environments. In addition to the pump, the kit includes one M18™ REDLITHIUM™ High Output™ HD12.0 Battery, and an M18™ & M12™ Rapid Charger.

  • Compatible with all 10,000psi (700bar) rated hoses and single-acting accessory heads

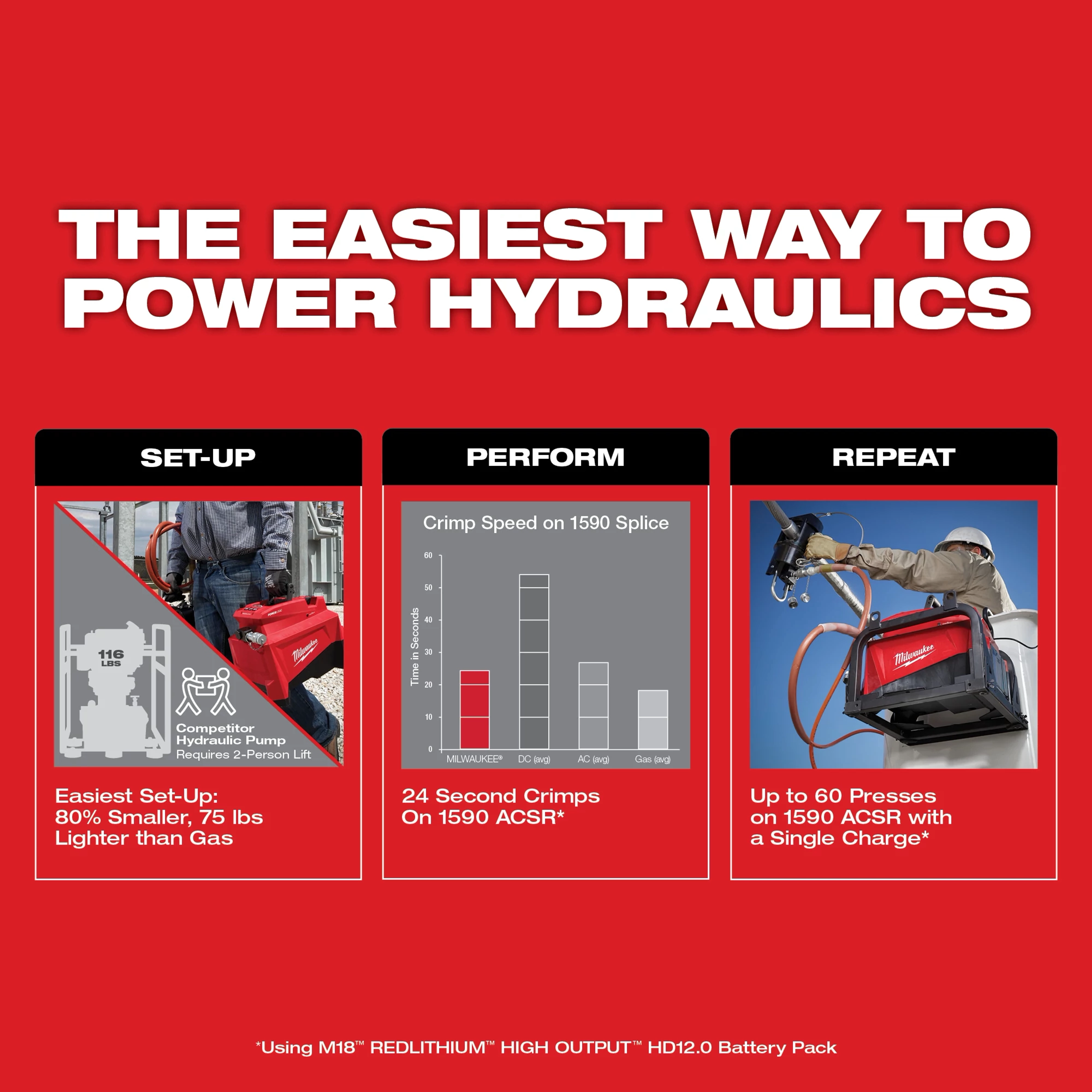

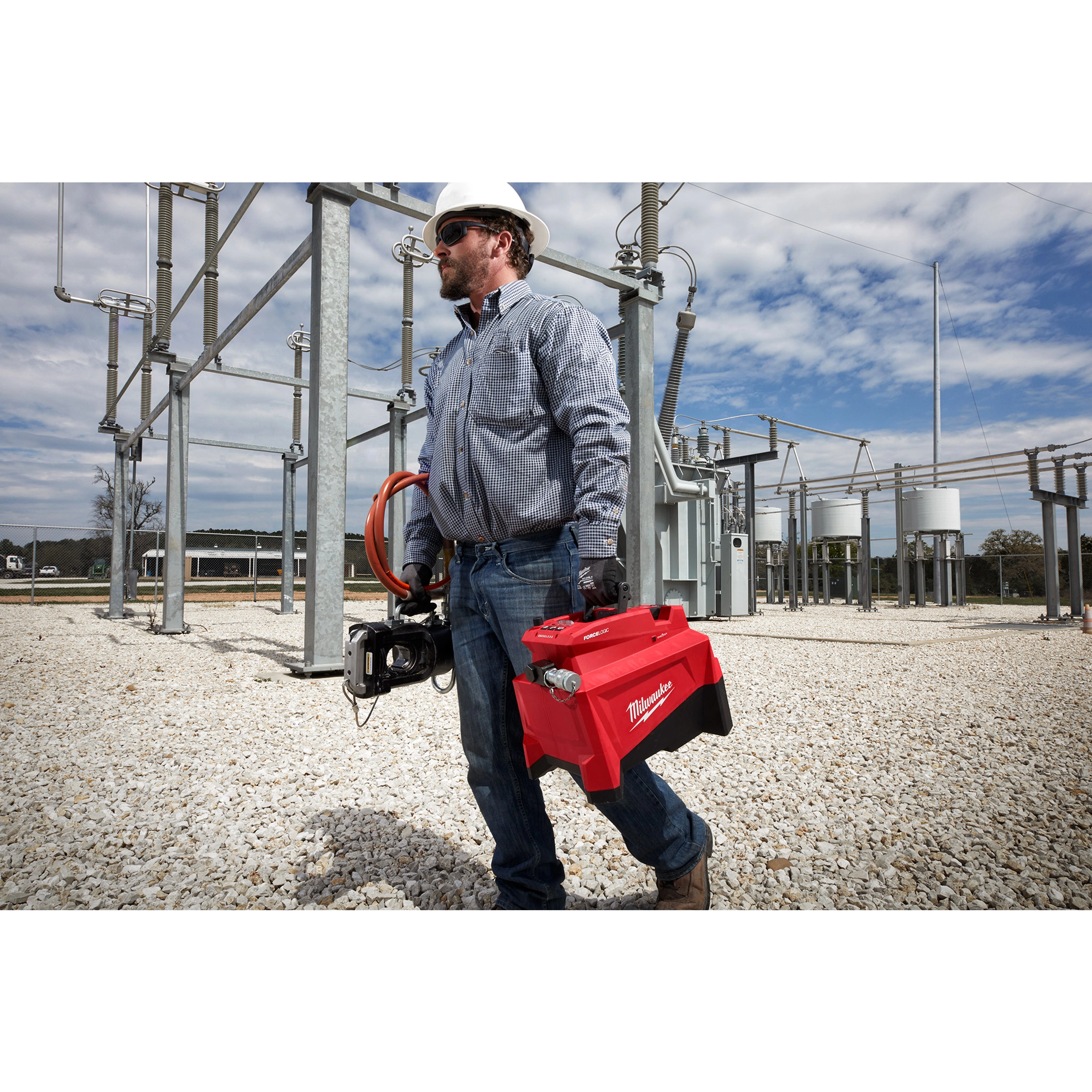

  • Easiest Set-Up: 80% Smaller, 75lbs Lighter than Gas Units
  • Gas-Like Performance: 24sec Cycle Times and Up to 60 Presses on a Single Charge on 1590 ACSR Connectors
  • 3X the High-Pressure Flow Rate of Competitive Cordless Units

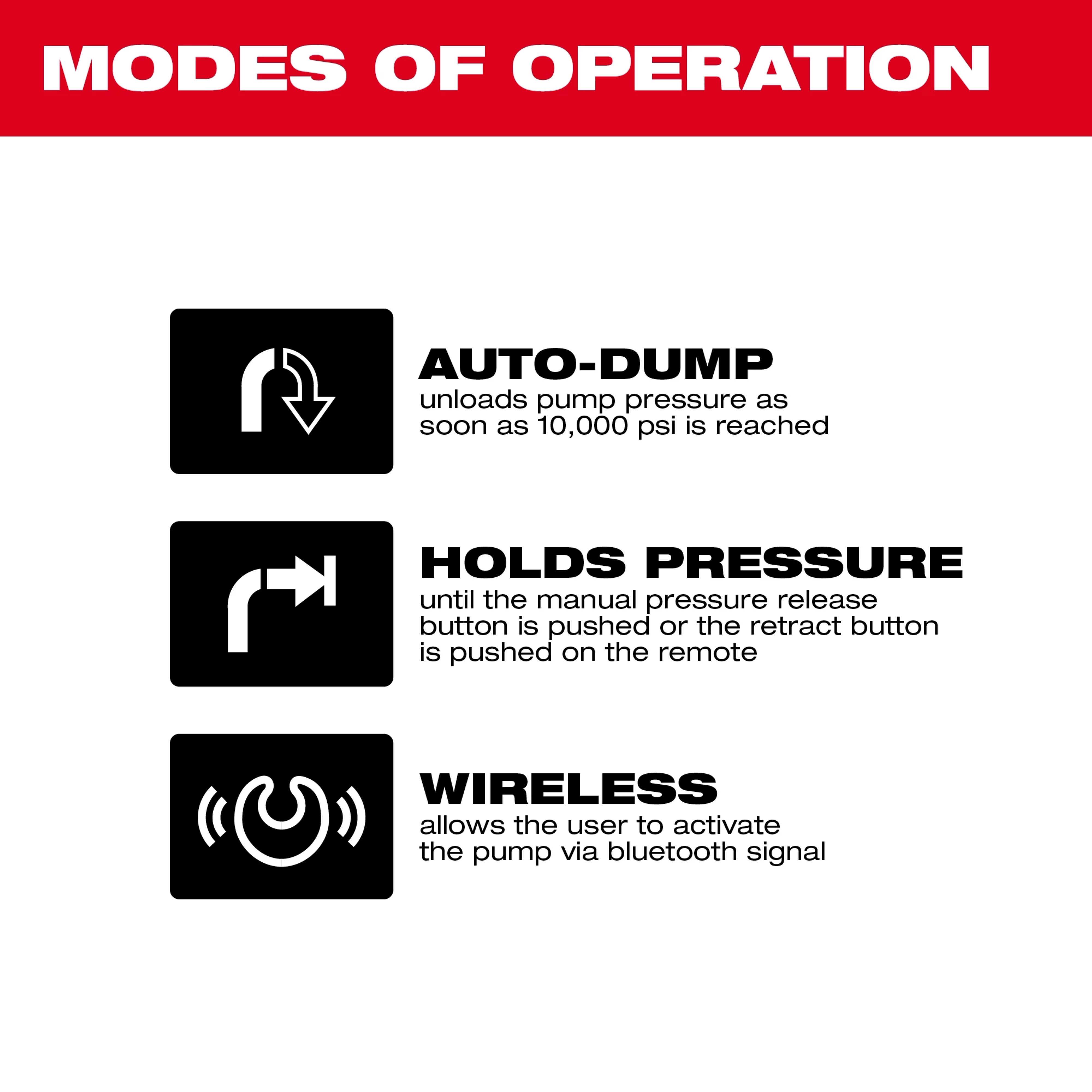

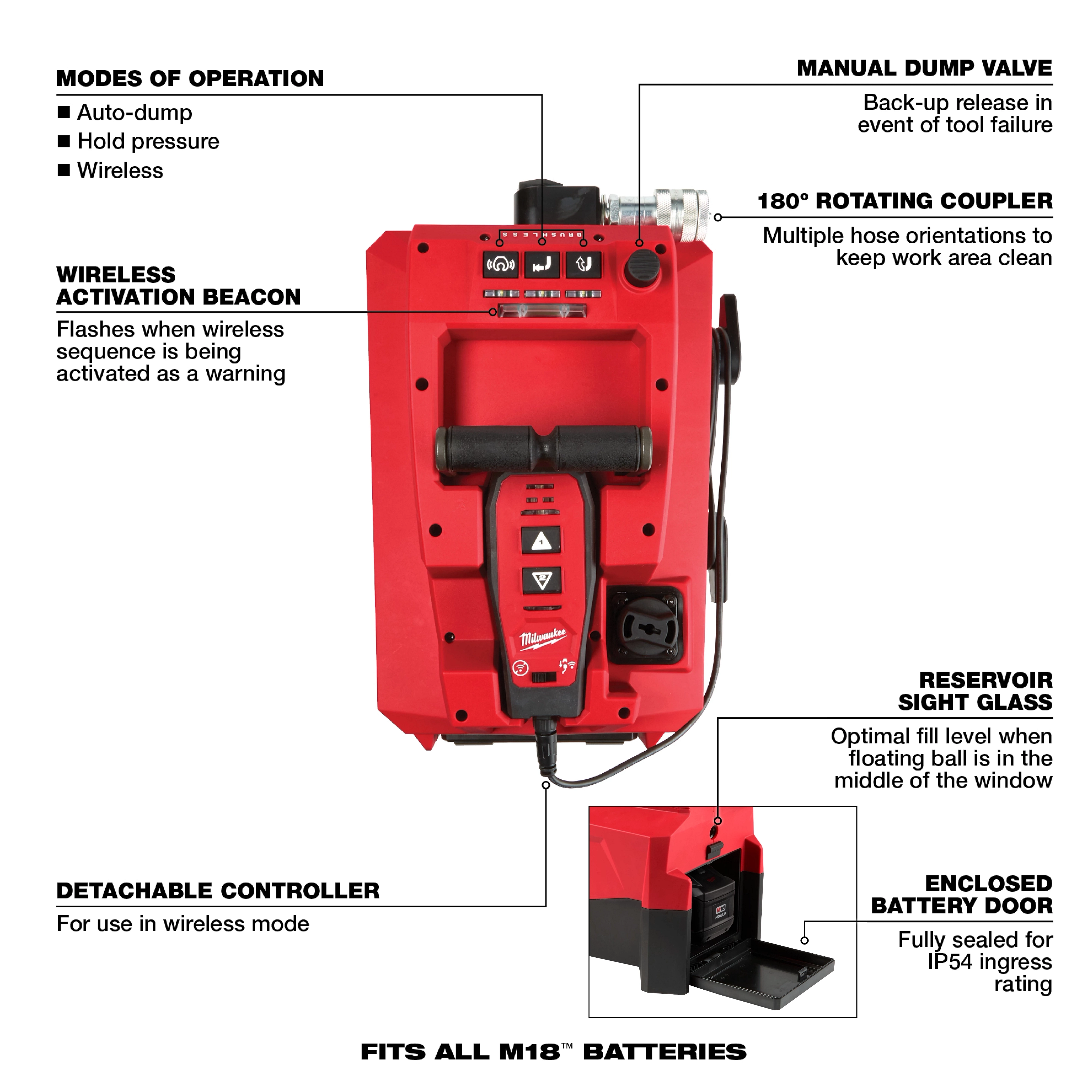

  • 3-Modes of Operation: Auto-Dump, Hold-Pressure & Remote Cut

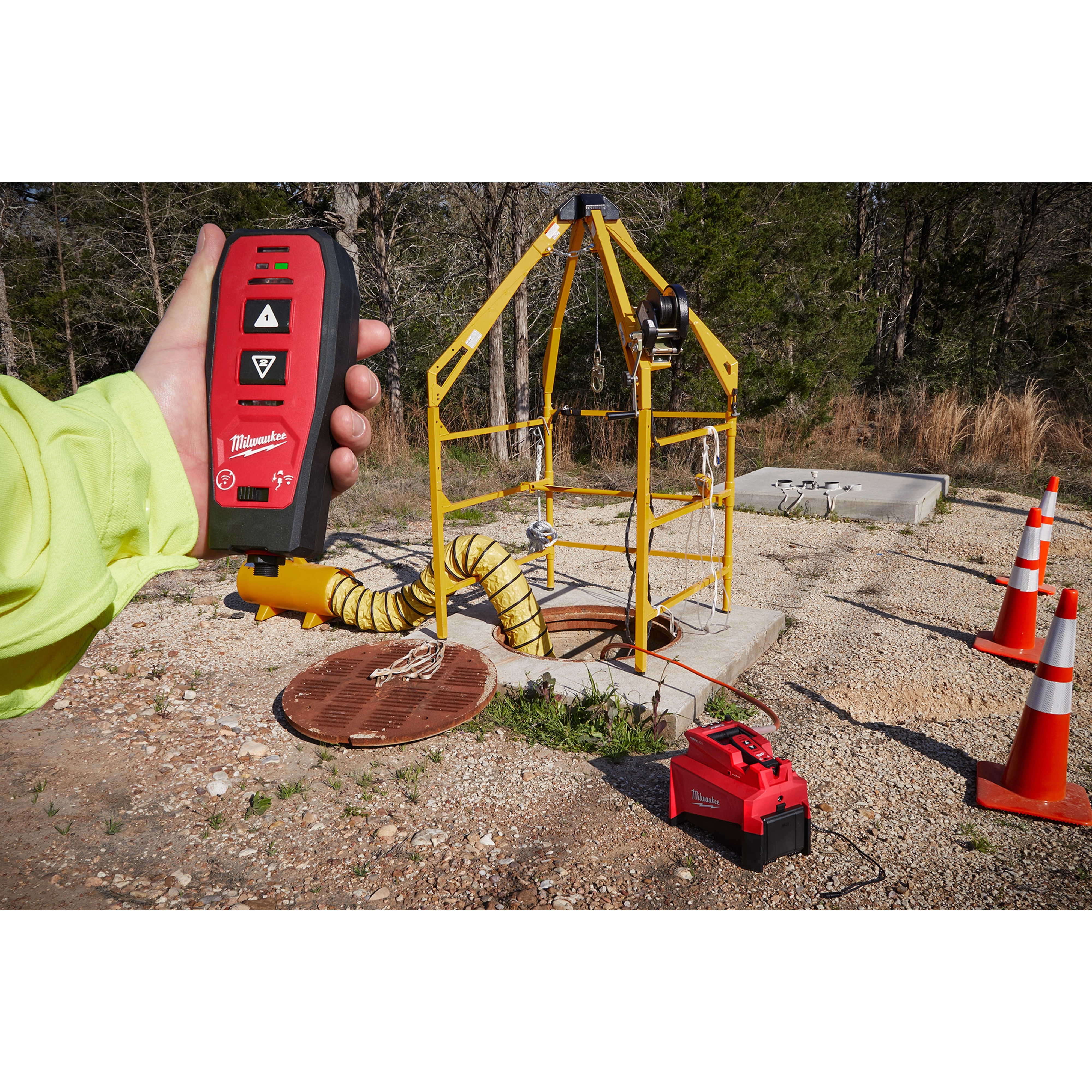

  • Remove the physical connection to a potentially live cable with mutually exclusive wireless pairing in Wireless Mode

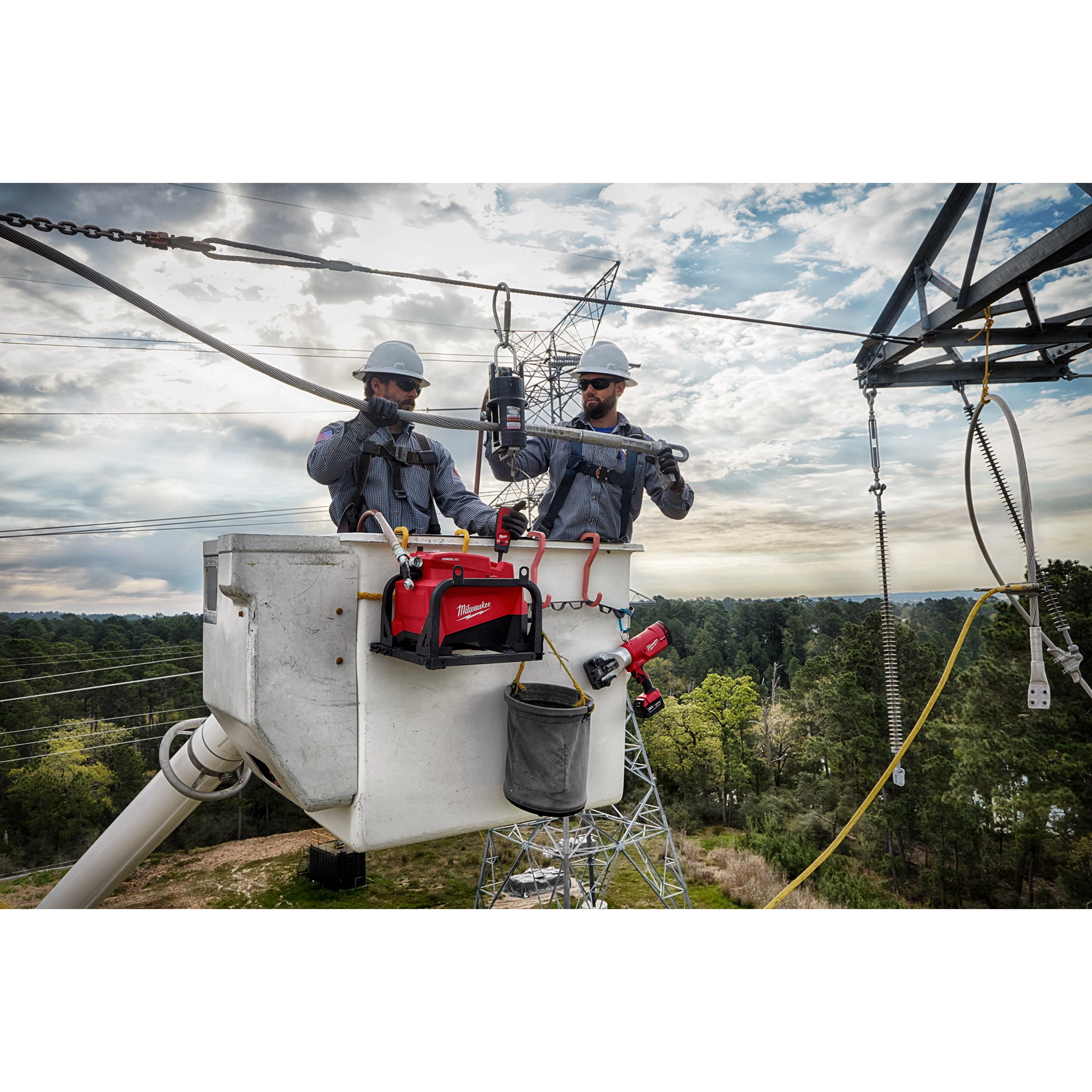

  • Available Bucket Hanger Accessory Ensures Ideal Operating Position – Fits Most Buckets & Baskets
  • IP54 Rated Ingress Protection with Sealed Battery Door
  • 6ft Controller Cord with On-Board Storage for Easy Operation
  • Battery Check Automatically Ensures Enough Charge to Complete Each Application (HD8.0ah batteries and up)
  • PFM™ (Predictive Force Monitoring) Provides Instant Pressure Verification with Green Indicator

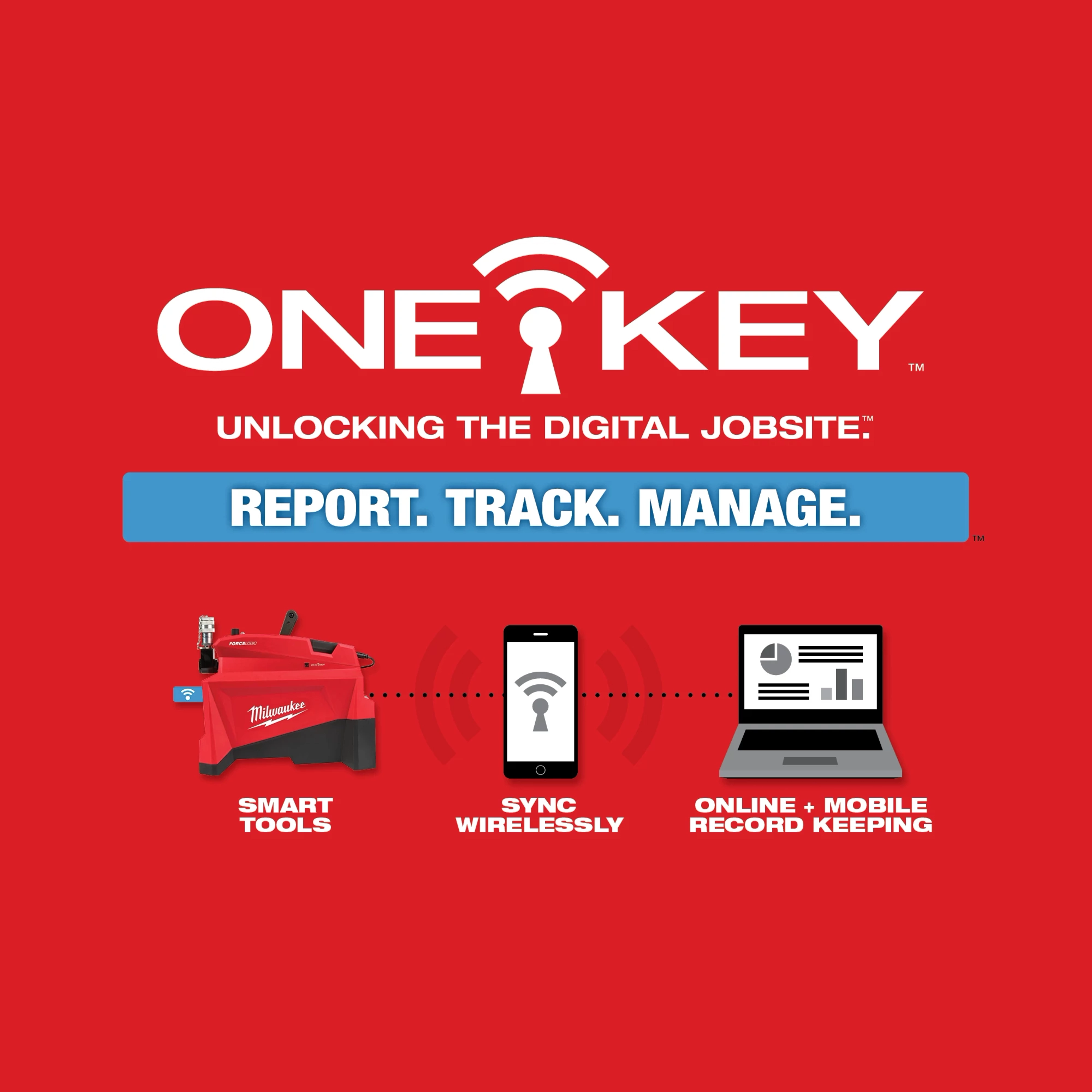

  • Records & Stores Every Cycle Made for Professional Report Building through ONE-KEY™
  • Longer Life with POWERSTATE™ Brushless Motor & Weather Protected Electronics that Keep Dirt, Dust & Moisture Out

Track. Manage.

Track your tool's location from anywhere
Lock your tool and disable remotely
Manage your assets your way
Learn More
You May Also Like...

Battery Specifications

Product Specifications

Power Source Cordless
Length 15.87"
Weight 29.8 lbs
Width 11.69"
Battery System M18
