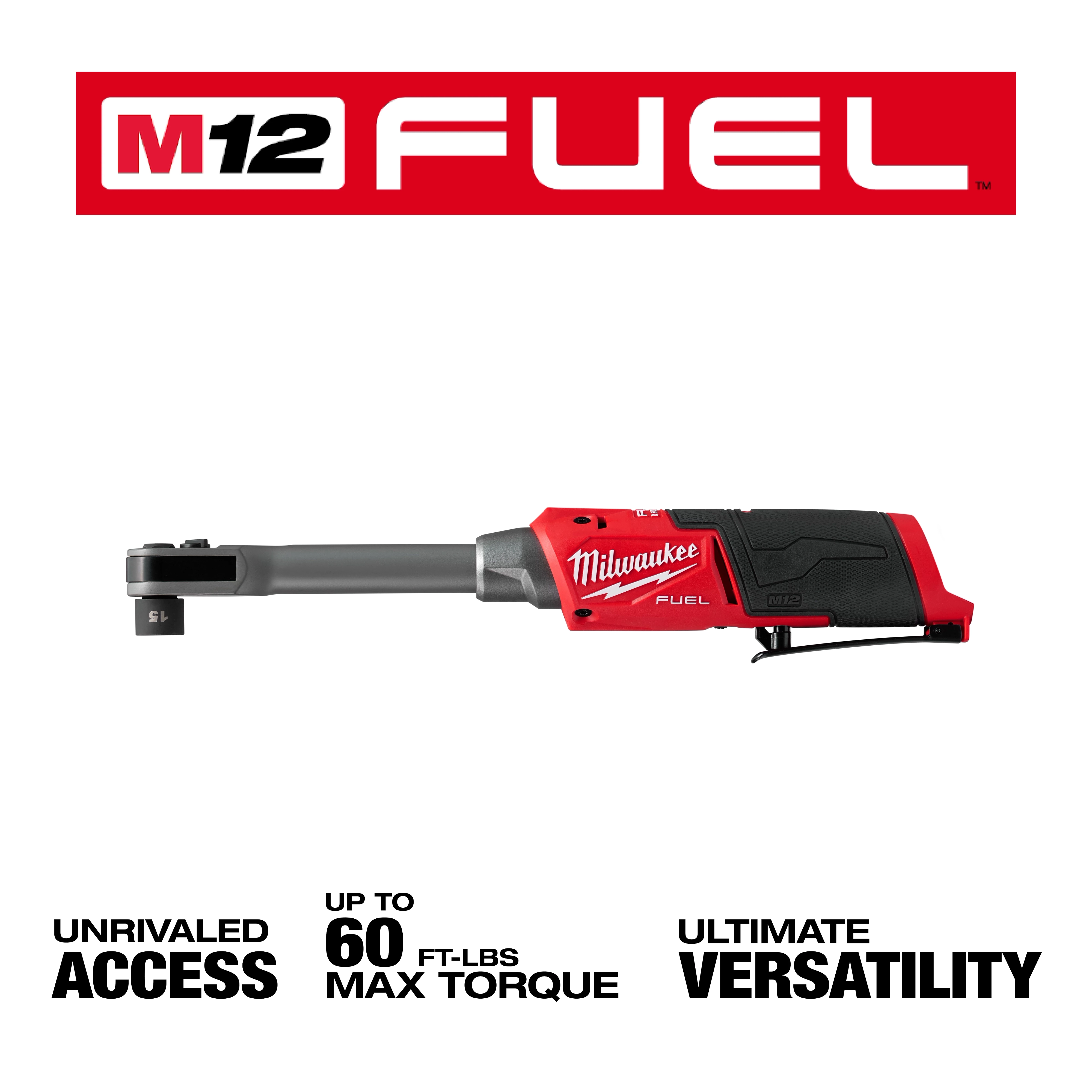

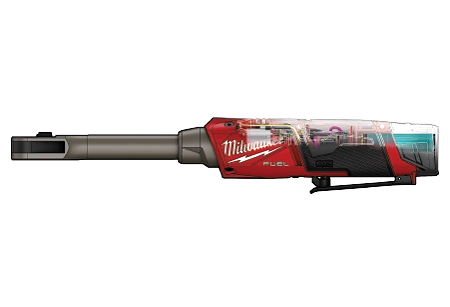

M12 FUEL™ INSIDER™ Extended Reach Box Ratchet

Our M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is a new-to-world solution that reinvents the traditional ratchet. The low-profile head design allows sockets & adapters to be inserted directly into the tool. Our M12 FUEL™ INSIDER™ delivers UNRIVALED ACCESS and over ¾” shorter head profile size with the socket to reach deep into the engine bay and fit into the tightest spaces. The INSIDER™ delivers the combination of 60 FT-LBS OF MAX TORQUE and 350 RPMs to remove stubborn fasteners and complete more work faster. Mechanics will experience the ULTIMATE VERSATILITY with our provided INSIDER™ Box Ratchet Sockets (8-19, & 21mm), ¼” Hex Bit, ¼” anvil adapter, & 3/8” anvil adapter to tackle any job in the shop. Our Box Ratchet 6 Point Sockets are pass through up to 15mm & 9/16” to run nuts on threaded rod and eliminate the frustration of sockets bottoming out. Our M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is part of the M12™ System, which is fully compatible with over 150 solutions.
M12 FUEL™ INSIDER™ Extended Reach Box Ratchet

M12 FUEL™ INSIDER™ Extended Reach Box Ratchet

Key FeaturesSpecificationsReviews
M12 Fuel

INSIDER™ EXTENDED REACH
BOX RATCHET

UNRIVALED
Access
UP TO
60 FT-LBS
MAX TORQUE
ULTIMATE
VERSATILITY
Cycle Arrow
3
2
1
Click a Number for Details

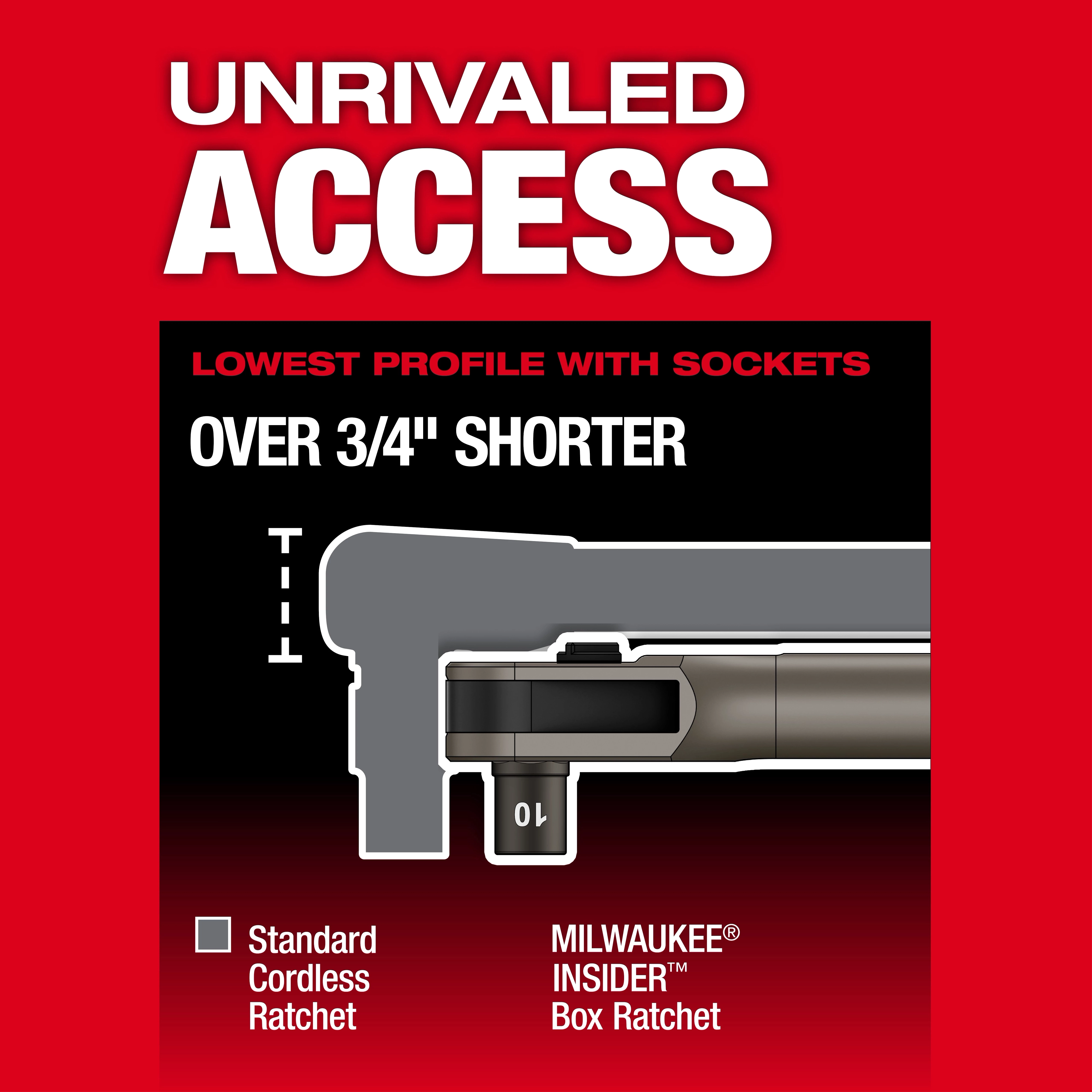

UNRIVALED ACCESS

  • Industries lowest profile with socket
  • Best combination of Size and Power
  • Longest Reach in tightest spaces

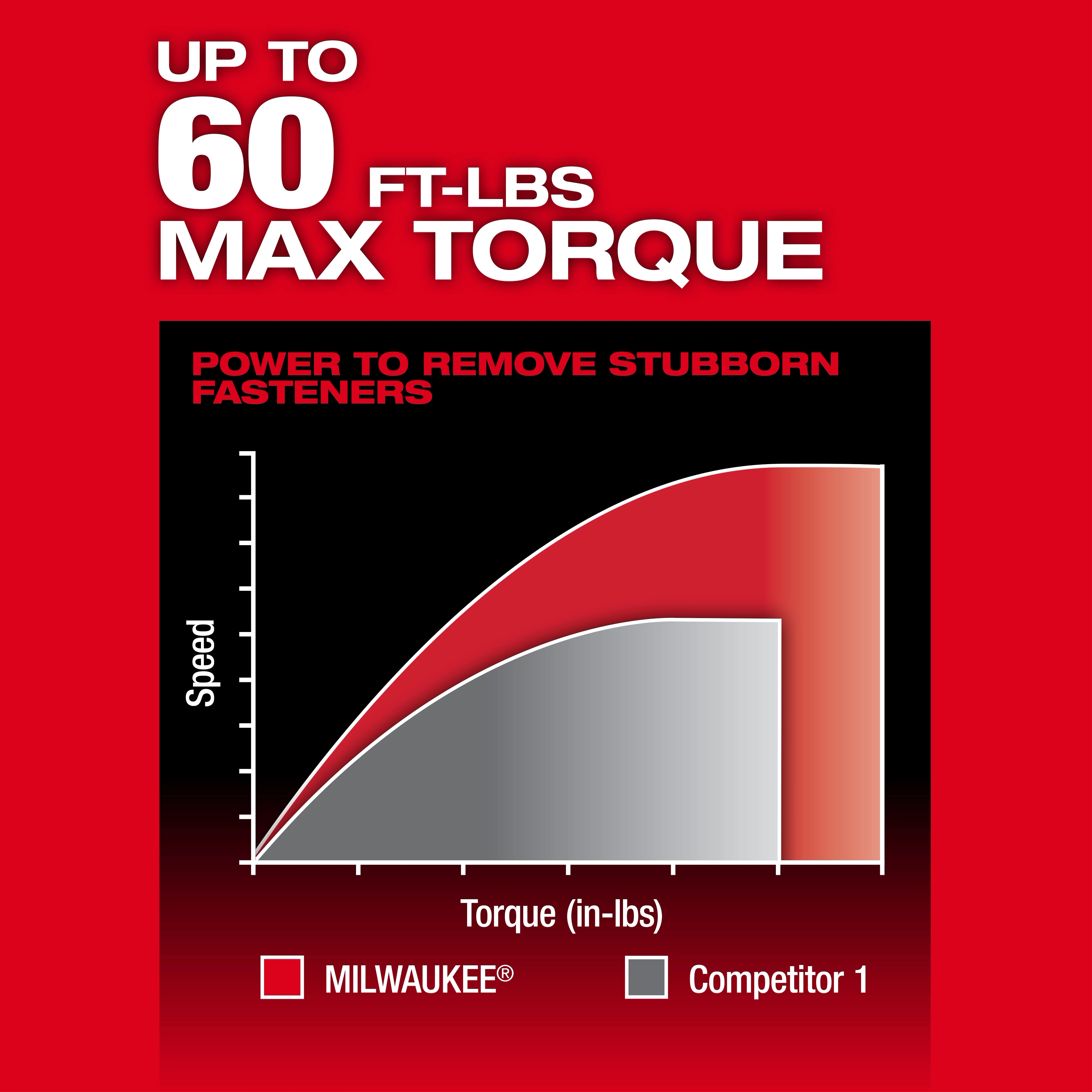

UP TO 60 FT-LBS MAX TORQUE

  • Break and Run stubborn Fasteners
  • Best combination of Power and Speed
  • Eliminate need for pneumatic and manual solutions

ULTIMATE VERSATILITY

  • Complete more jobs with the INSIDER™ sockets and adapters
  • Interchangeable drive sizes 1/4" 3/8", 1/2" and ¼" Hex
  • Protect investment of current sockets and specialty Fasteners
M12

PORTABLE PRODUCTIVITY
TRADE FOCUSED
SYSTEM WIDE

Unrivaled Access with INSIDER™ Box Ratchet Sockets
Best combination of speed (350 RPM) & torque (60 ft-lbs) with worlds smallest head size
Ultimate Versatility to get more jobs done with one tool

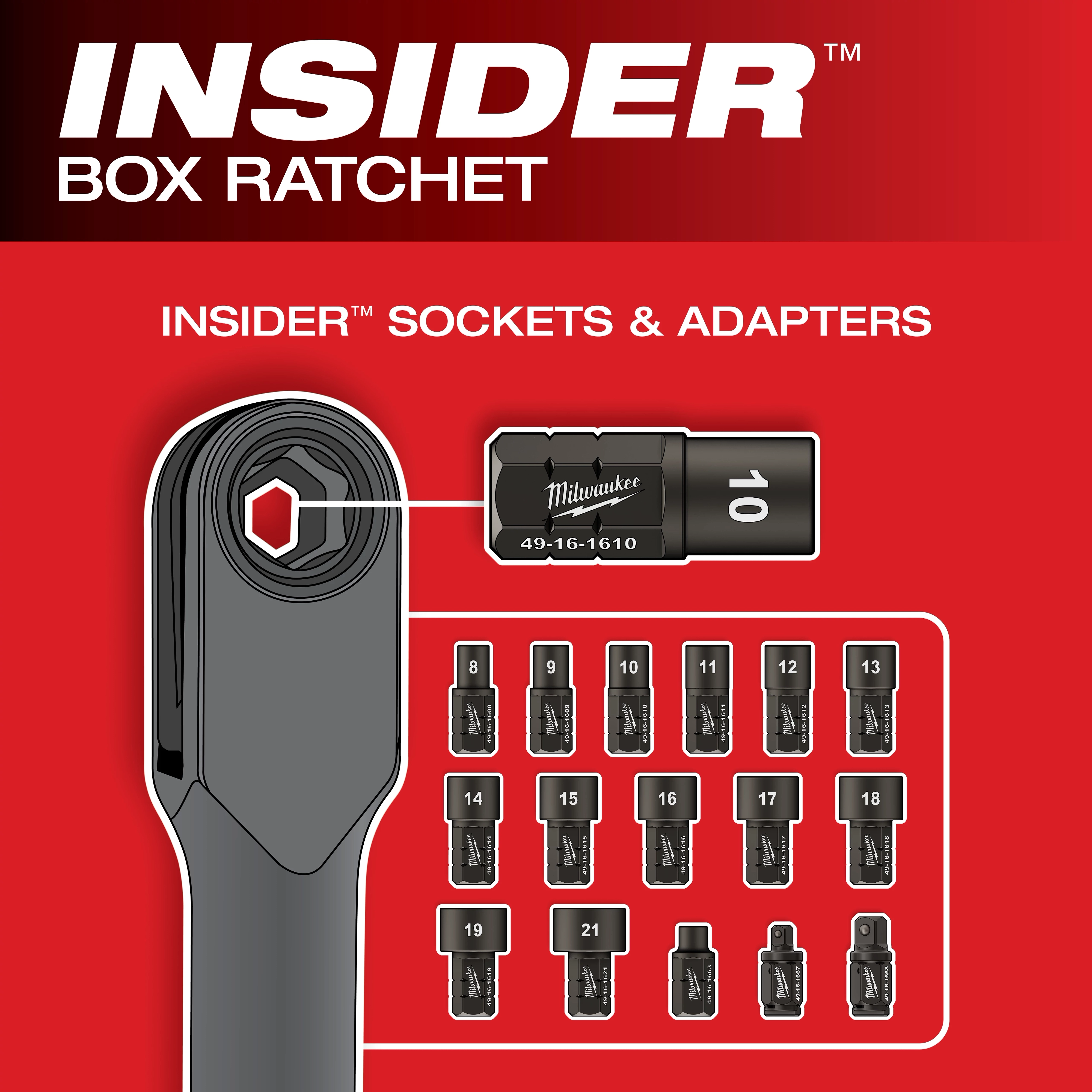

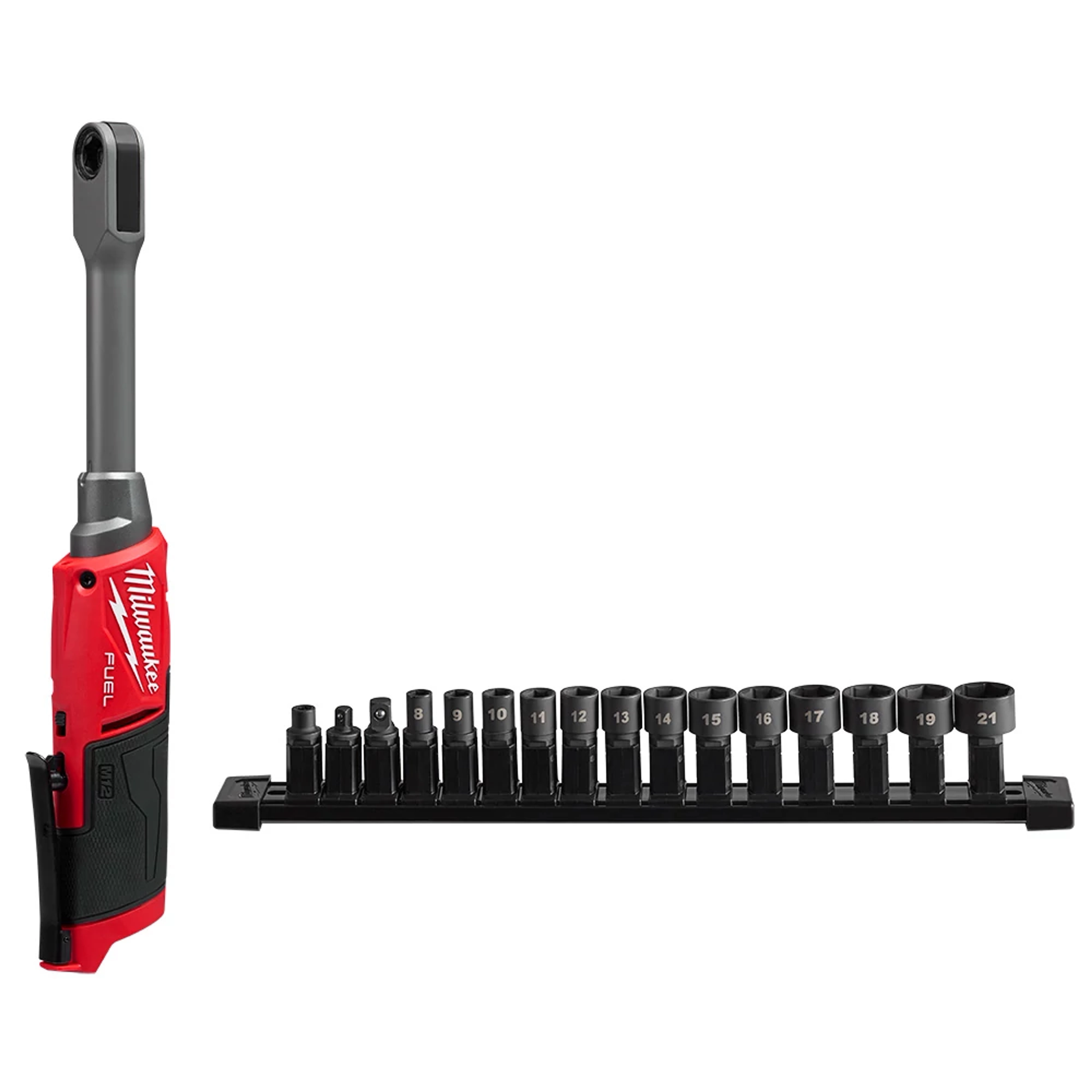

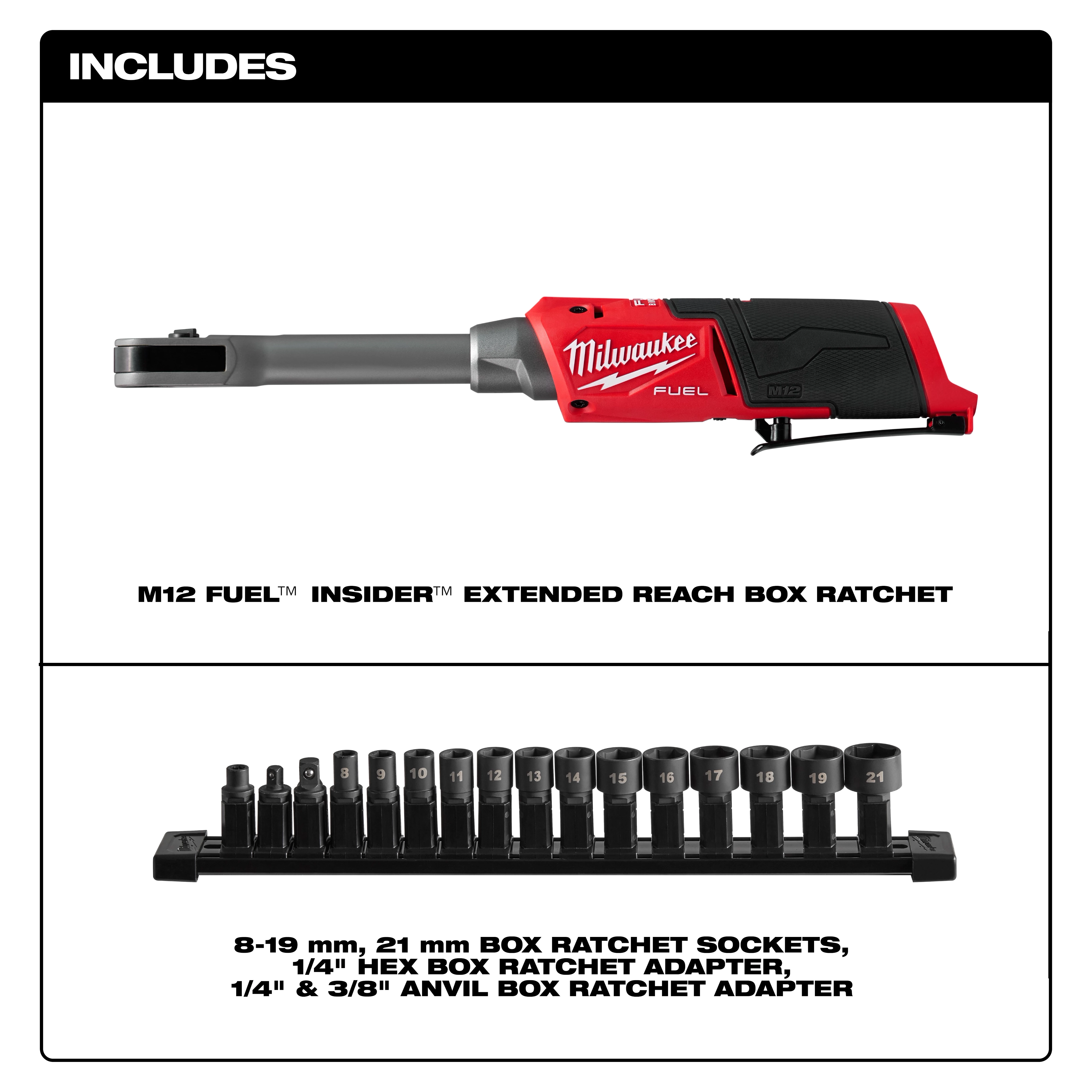

Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21
Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil
POWERSTATE™ brushless motor delivers maximum power and longer motor life
Can be used manually without engaging the tool’s motor
Dual LED lights to illuminate work areas
Extended reach neck for ultimate access and reduce knuckle busting
On-board battery fuel gauge displays remaining run time
Extended paddle switch for multiple grip positions
Sockets can be inserted into both sides of the tool to eliminate the trigger from impeding access

You May Also Like...

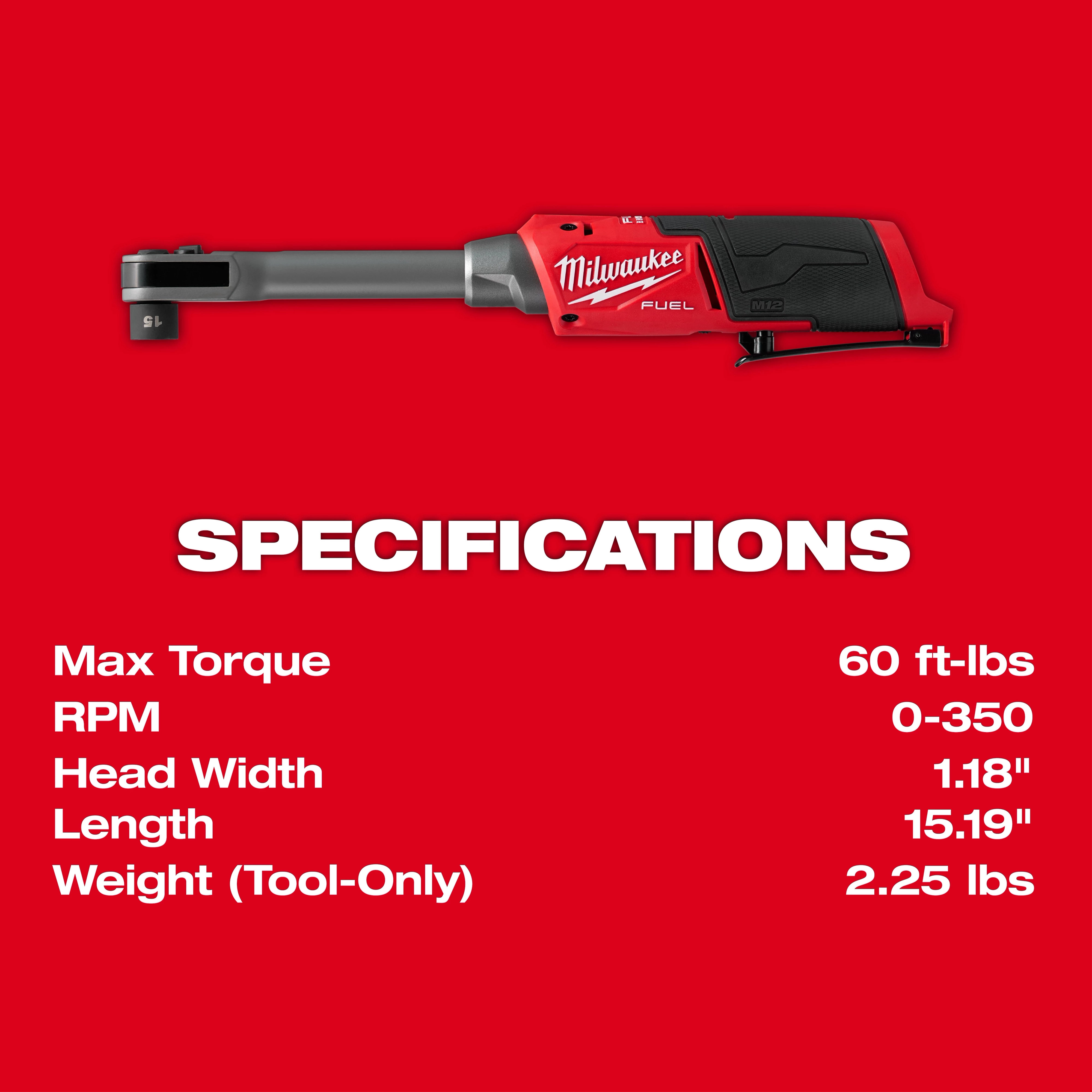

Product Specifications

Wrench Type
Extended Reach
Anvil Type
N/A
Fastening Torque
60 ft/lbs
Maximum Torque
60 ft-lbs
Head Profile
0.83 in
Torque Range
0 - 60ft-lbs
Power Source
Cordless
Motor Type
POWERSTATE Brushless
Material Composition
Metal
Length
15.2 in
Weight
2.3 lb
Height
2.74 in
Width
2 in
Fuel
Yes
Brushless
Yes
Battery System
M12
Tool Accuracy
N/A
Maximum RPM
350 rpm
RPM Range
0-350 RPM
