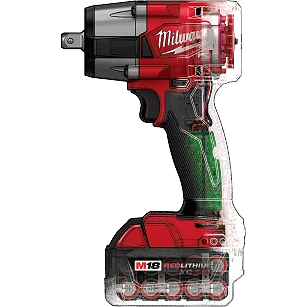

M18 FUEL™ 1/2 " Mid-Torque Impact Wrench w/ Pin Detent

Our M18 FUEL™ 1/2" Mid-Torque Impact Wrench w/ Pin Detent delivers the best power to weight ratio, most access in tight spaces, and faster removal speed. It provides 650 ft-lbs of nut-busting torque and only weighs 5.1 lbs, making it extremely versatile, capable of performing a wide variety of applications. Its POWERSTATE™ Brushless Motor generates the power needed to quickly perform many tasks, such as removing large bolts or lug nuts. This MILWAUKEE® 1/2" Impact Wrench is the most compact in its class, giving you access to stubborn fasteners in spaces where larger impact wrenches can’t fit without needing to disassemble components to reach bolts. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 35 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control that delivers you full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence ensures maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18™ REDLITHIUM™ battery pack (not included) fits M18™ tools, delivering more work per charge and more work over the life of the pack.

1/2" Mid-Torque Impact Wrench
W/ Pin Detent

Best
Power To
Weight Ratio
Most
Access In
Tight Spaces
Up To
550 Ft-lbs Max
Fastening Torque

BEST POWER TO WEIGHT RATIO

POWERSTATE™ Brushless Motor provides 600ft-lbs of nut-busting torque while weighing less than high torque impact wrenches

MOST ACCESS IN TIGHT SPACES

Shortest length impact wrench in class provides access to the tightest spaces

UP TO 550 FT-LBS MAX FASTENING TORQUE

More fastening power than competitive mid and high torque impact wrenches

M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

  • Best power to weight ratio is offered as the tool provides 650 ft-lbs. of nut-busting torque at only 5.1 lbs. with a 5.0Ah battery.
  • 6.0" in length provides most access in tight spaces
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 35 ft-lbs. of torque.
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
  • Mode 1 RPMs: 0-1,250; Mode 2 RPMs: 0-1,950; Mode 3 RPMs: 0-2,575; Mode 4 RPMs: 0-2,575
  • Mode 1 IPMs: 0-900; Mode 2 IPMs: 0-2,100; Mode 3 IPMs: 0-3,100; Mode 4 IPMs: 0-3,100
  • REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • Works in up to to 69kV environments
  • Compatible with all M18™ batteries & Chargers
  • The POWERSTATE™ brushless motor delivers up to 550 ft-lbs. of max fastening torque
You May Also Like...

Product Specifications

Wrench Type Mid-Torque
Anvil Type Detent Pin
Fastening Torque 650 ft-lbs
Maximum Torque 650 ft-lbs
IPM 0 - 3,500 ipm
Nut-Busting Torque 550 ft-lbs
Tool Warranty 5 Year Limited Warranty
Power Source Cordless
Motor Type POWERSTATE™ Brushless
Material Composition Aluminum
Length 6 in
Weight 3.9 lbs
Height 8.12 in
Width 2.74 in
Brushless Yes
Battery System M18
DRIVE CONTROL 4-Mode w/ Bolt Removal Mode
Maximum RPM 2575 rpm
Peak Torque 650 ft-lbs
RPM Range 0 - 2,400 rpm
