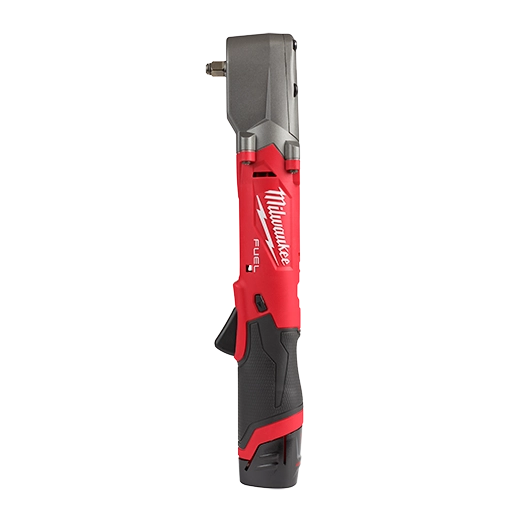

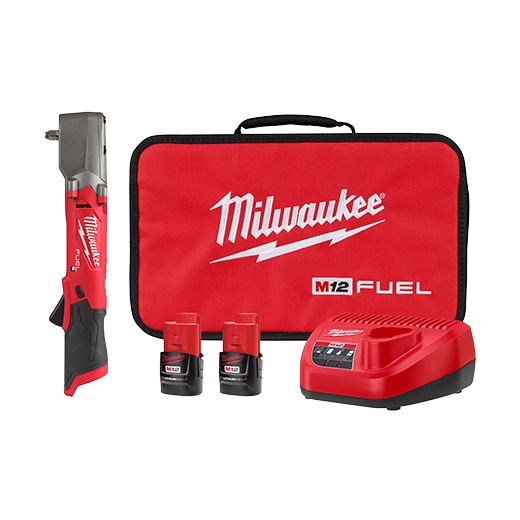

M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring Kit

Our M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring is the industry's most powerful right angle impact wrench. You’ll be able to easily remove stubborn bolts and fasteners with up to 220 ft-lbs. of nut-busting torque without kickback. This cordless right angle impact wrench also gives you maximum access with ultimate control in hard to reach applications. Our durable cordless impact wrench easily fits into tighter spaces than traditional pistol-grip impact wrenches with a profile head of only 2.2”. This allows you to be more productive by decreasing your need for socket extensions often used with pistol-grip impact tools. The 4-Mode Drive Control delivers unmatched control in various fastening and bolt removal applications. Modes 1-3 provide RPM and IPM adjustments for maximum precision, and Mode 4 is equipped with Auto Shut-off in forward and Bolt Removal Mode in reverse. Our Auto Shut-off Mode will prevent over-tightening of bolts by applying no more than 15 ft-lbs. of torque. Bolt Removal Mode provides more control by drastically slowing down RPMs once the bolt is loosened. The REDLINK PLUS™ Intelligence ensures you achieve maximum performance and protection against overloads, over-heating, and over-discharge. This cordless ⅜” impact wrench is powered by MILWAUKEE® M12™ REDLITHIUM™ Battery Packs (not included), which are compatible with all M12™ tools, delivering more work per charge and more work over the life of the pack.

3/8” RIGHT ANGLE IMPACT
WRENCH W/ FRICTION RING

UP TO
220 ft-lbs
Nut-Busting
Torque
More
Access In
Tight Spaces
4 Mode
Drive Control

UP TO 220 FT-LBS NUT BUSTING TORQUE

  • Most powerful cordless right angle impact wrench
  • POWERSTATE™ Brushless Motor delivers the power to complete a wide variety of applications

MORE ACCESS IN TIGHT SPACES

  • Long 14.1” body allows for more access in hard to reach spaces
  • Small 2.2” head profile allows for more access in tight spaces

4-MODE DRIVE CONTROL

  • Auto Shut-Off mode prevents over tightening
  • Bolt removal mode offers more control after bolt breakaway
M12

PORTABLE PRODUCTIVITY
TRADE FOCUSED
SYSTEM WIDE

  • POWERSTATE™ Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
  • A 2.2" head profile design allows for more access in tight spaces
  • Mode 1 RPMs: 0-1,550; Mode 2 RPMs: 0-2,300; Mode 3 RPMs: 0-3,000; Mode 4 RPMs: 0-3,000
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
  • Mode 1 IPMs: 0-1,350; Mode 2 IPMs: 0-2,700; - Mode 3 IPMs: 0-3,600; Mode 4 IPMs: 0-3,600
  • The long body profile of 14.17" allows for more access in hard to reach spaces
  • Designed with an impact mechanism that prevents kick-back
  • LED light to illuminate the work area
  • Premium rubber overmold withstands corrosive materials and provides increased comfort when in use
You May Also Like...

Battery Specifications

Voltage 12V
Battery Type 12 Volt Lithium Ion

Product Specifications

Wrench Type Right Angle
Anvil Type Friction Ring
Fastening Torque 200 ft-lbs
Maximum Torque 220 ft-lbs
Head Profile 2.2 in
IPM 0 - 3,600
Nut-Busting Torque 220 ft-lbs
Tool Warranty 5 Year Tool, 2 Year Battery
Power Source Cordless
Motor Type POWERSTATE Brushless
Material Composition Aluminum
Length 13.89 in
Weight 3.05 lb
Height 2.81 in
Width 2.32 in
Brushless Yes
Battery System M12
Chuck Type Not Applicable
Chuck Size Not Applicable
DRIVE CONTROL 4-Mode
Maximum RPM 3000 rpm
RPM Range 0 - 3,000
