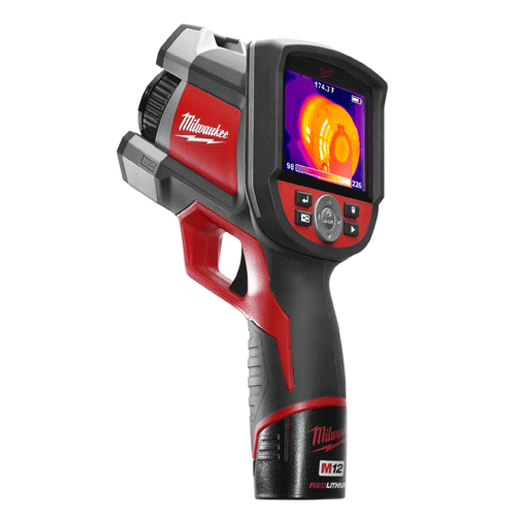

M12™ 160 X 120 Thermal Imager (NIST) Kit

The 2260-21NST M12™ 160x120 Thermal Imager (NIST) is faster, more versatile and easier to use than any other tool in its class. The M12 ™ 160x120 Thermal Imager (NIST) comes as a complete kit including a professional thermal imager with 160x120 pixel resolution, a simple and powerful Thermal Imager Software to quickly generate reports and leverages Milwaukee's M12™ battery system for quick charging and easy field replacement. The Milwaukee Thermal Imager is ideal for use by Electrical Contractors, HVAC/R Technicians, Building Inspectors, Energy Auditors and Plant Maintenance teams. It is also RESNET compliant. The Milwaukee Thermal Imager is a fantastic tool to diagnose problems with motors, drives, pumps, mechanical equipment, electrical panels, chillers, air handlers, and identify energy losses around doors or windows. It can also be used to identify roof leaks and detect areas where mold could be present. The 2260-21NST M12™ 160x120 Thermal Imager (NIST) includes a hard carry case with rigid foam inserts, (1) M12 RED LITHIUM rechargeable battery, (1) 30-minute M12™ Lithium-Ion charger, (1) 2GB SD card, (1) SD card reader, (1) mini-B to USB cable, (1) CD-ROM containing the Thermal Imager Report Software, Software manual and Thermal Imager manual, (1) Quick reference thermal imager guide, (1) NIST Calibration Certificate. Covered by 5 Year Warranty. Nothing but HEAVY DUTY. For Customer Service call 1-800-SAWDUST (1-800-729-3878).

Includes

(1) M12™ Lithium-ion Battery Charger (48-59-2401)(1) M12™ REDLITHIUM™ CP1.5 Battery Pack(48-11-2401)
(1) Carrying Case
(1) Thermal Imager Report Software
(1) SD Card Reader
(1) Software Manual
(1) Thermal Imager Manual
(1) Quick Reference Guide
(1) 2GB SD Card
(1) USB Cable
This product is no longer available, however it has been replaced with

M12™ 160 X 120 Thermal Imager (NIST) Kit

Key FeaturesSpecificationsReviews
Capture Thermal and Visual Images on each trigger pull for enhanced reporting
Crisp, High Resolution 160x120 pixel Thermal Images for better definition and clarity
Complete Report Software to easily analyze images
Broader Temperature Range (-10 to 350°C) to cover more applications
5X Faster Battery charge over closest competitor
M12™ RED LITHIUM™ batteries allow for rapid field replacement
3.5” High Resolution LCD (640x480 pixel) for easier troubleshooting
Built-In Visual Camera and Flashlight for improved analysis
Rugged Overmolding for increased durability and grip
Simple screen layout allows you to focus on getting the best images
Raised corners protect the LCD and thermal engine if dropped
Hinged camera style lens cover is always attached, so is never lost
Knurled focus ring is easy to grip with arc flash PPE
All Thermal and Visual images use standard JPEG format for use in any program
Media door seals the included 2GB SD card and USB connections

You May Also Like...

Product Specifications

Tool Warranty
5 Years
Battery Type
12 Volt Lithium Ion
Switch Type
On/Off Button
Temperature Range
14 to 662°F (-10 to 350°C)
Display Resolution
160 X 120 pixels
Charge Time
30 Minutes
Voltage
12V
Auto Battery Off
After 5 minutes, the LCD will turn off. After 20 minutes, the entire Thermal Imager will turn off.
LCD Display
3.5" Color LCD (640 x 480)
Battery Life
> 4 Hours
Data Storage
2GB SD Card. Upgradeable to 32GB
Thermal Sensitivity
0.1°C at 30°C
Field of View
25° x 19°
Focus Method
Manual Focus Ring
Ranging
Auto and Manual. Scaling with level and span.
Color Palletes
Iron, Rainbow, Gray
Visual Camera
Yes
Screen Refresh Rate
60 Times Per Second
Minimum Focus Distance
4"
IP Ratings
IP54
External Software
Yes. The Milwaukee Thermal Imager Report Software provides analysis and reporting functionality. Compatible with Windows 7, Vista and XP.
Thermal Imager Report Software File
Export images in jpeg format. Reports are downloaded as pdf files.
