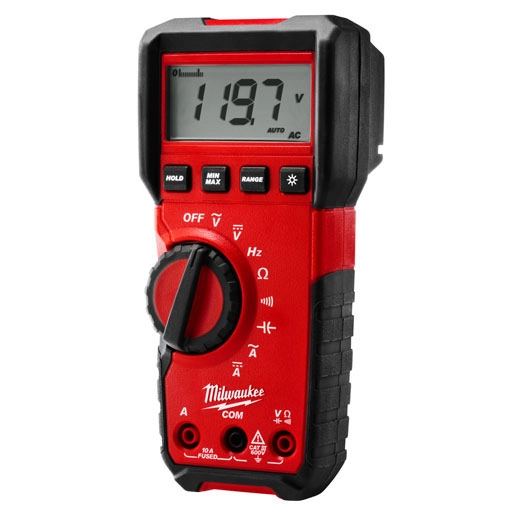

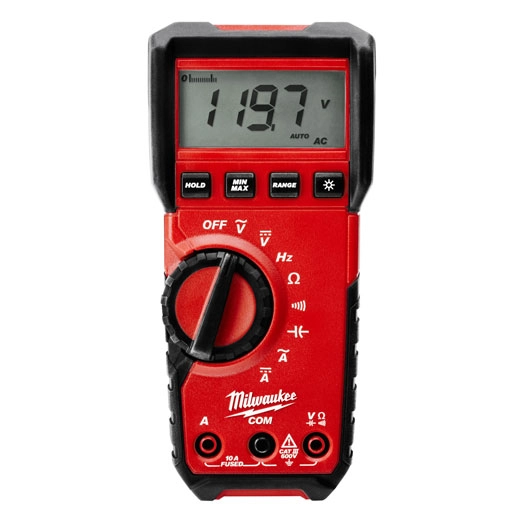

Digital Multimeter

Heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 Digital Multimeter features: True RMS measurement to accurately measure all applications; CATIII 600V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 volts; DC voltage range of 600 millivolts to 600 volts DC; Resistance measurement from 600 ohms to 40 Mohm; frequency measurement from 10Hz to 50 kilohertz; detects continuity at less than 30 ohms; Current measurement to 10amps AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories; includes one (1) test lead set, two (2) AA batteries, and manual; covered by 5 year warranty. Nothing but HEAVY DUTY.

Includes

(1) Digital Multimeter(2216-20)
(1) Electrical Test Lead Set
(2) AA Batteries
(1) Manual

Digital Multimeter

Key FeaturesSpecificationsReviews
True-RMS for accurate measurement in all applications
Wide Voltage range to 600 AC /DC volts
Resistance range from 600 ohm to 40 Mohm
Auto Range to mV
Frequency measurements from 10Hz to 50kHz
Current Measurement to 10A AC/DC
Rugged over-molding increases durability and user grip
CAT III 600V for increased safety
Capacitance to 1000 μF

You May Also Like...

Product Specifications

Tool Warranty
5 Years
Battery Type
Alkaline (AA)
Display Type
Standard LCD
Switch Type
Dial
Length
6-1/2"
TRMS
Yes
Current AC DC
10.00A
Frequency
2.00 Hz - 50.00 kHz
Resistance
40MΩ
Continuity
Audible
Capacitance
1,000μF
Safety Category Rating
CAT III 600V
Voltage AC
6.00mV - 600V
Voltage DC
600.0mV - 600V
Backlight
Yes
HOLD MIN MAX
Yes
Bargraph
Yes
Rugged Overmolding
Yes
Accessory Attachment
Magnetic Meter Holder
Calibration Needed
Yes - Recommend calibration service once every year
