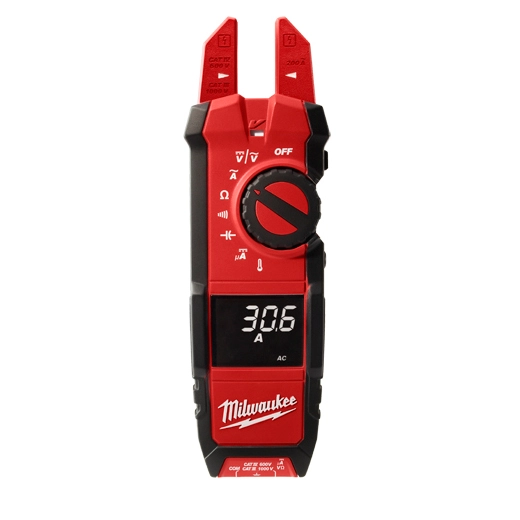

Fork Meter for HVAC/R

The Milwaukee Fork Meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63” fork opening, high 200amp current range and a high contrast white-on-black display. Covered by Milwaukee 5-Year Warranty.

Includes

(1) Fork Meter for HVAC/R(2206-20)
(1) Test Lead Set
(1) Dual Banana Thermocouple
(2) AA Batteries
(1) Manual

Fork Meter for HVAC/R

Key FeaturesSpecificationsReviews
Measures up to 200 amps, Wide 0.63” jaw opening
Wide Voltage range to 1000 volts AC /DC
True-RMS for accurate measurement in all applications

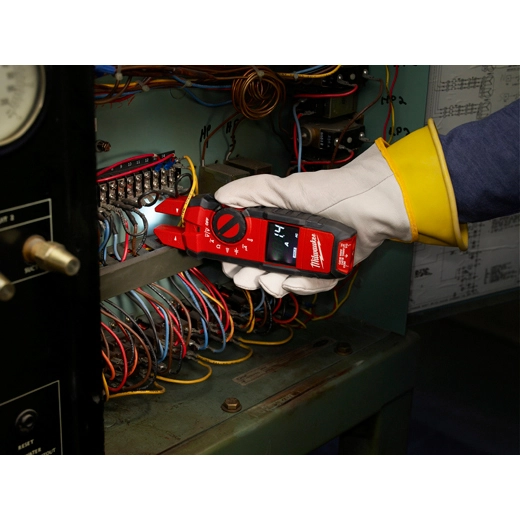

Built-In Voltage Detector and LED Work Light
Thermocouple (dual banana) input for contact temperature measurement
600 uA DC for Flame Rectification
High Contrast, White on Black Display with Backlight for easy reading
Rugged over-molding increases durability and user grip

You May Also Like...

Product Specifications

Tool Warranty
5 Years
Battery Type
Alkaline (AA)
Display Type
White on Black LCD
Switch Type
Dial
Length
8"
TRMS
Yes
Safety Rating
CAT IV 600V / CAT III 1000V
Current AC
200A
Microamps DC
1,000μA
Voltage AC DC
1000V
Resistance
40MΩ
Continuity
Audible
Capacitance
1,000μF
Contact Temperature
-40° F to 752° F (-40° C to 400° C)
Display Backlight
Yes
Non Contact Voltage
Yes
LED Work Light
Yes
Rugged Over molding
Yes
Fork Opening
.63"
